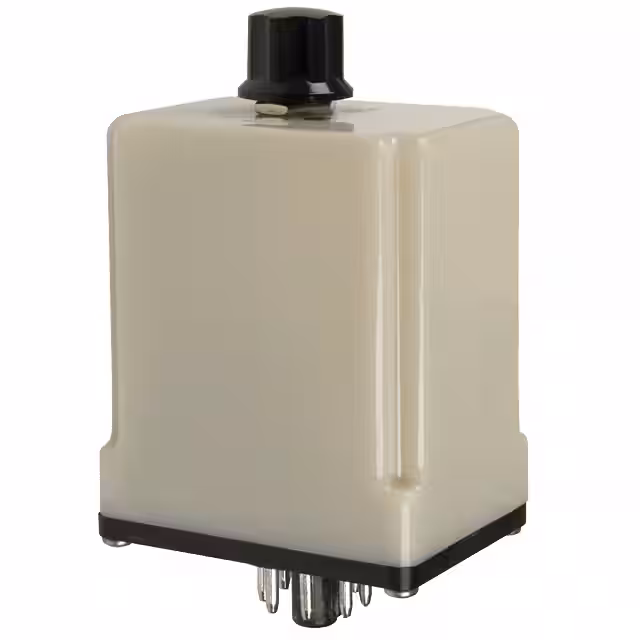

CB-1005B-70

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Time Delay Relays

ECCN Code :

EAR99

Dielectric Strength :

500 V

Approvals :

CSA, UL

Termination :

PLUG

Coil Current(AC)-Max :

0.025 A

Contact Rating @ Voltage :

10A @ 277VAC

Manufacturer :

TE Connectivity

Termination Type :

Snap-On

Reference Standard :

CSA; UL

Power Rating :

3 VA

Function :

On-Delay

Package :

Bulk

Relay Type :

Mechanical Relay

Adjustable Time Delay-Max :

180 s

Relay Action :

Momentary

Contact Voltage(AC)-Max :

277 V

Coil Voltage (AC) :

120 V

Mounting Style :

Socket

Termination Style :

Plug In, 8 Pin (Octal)

Product Status :

Obsolete

REACH SVHC :

Unknown

Subcategory :

Relays

Coil Voltage(AC)-Max :

120 V

Nominal Input Voltage (AC) :

120 V

Body Breadth :

45.2 mm

Max Current Rating :

10 A

Coil/Input Supply Type :

AC

Adjustable Time Delay-Min :

1.8 s

Max Voltage Rating (AC) :

277 V

Delay Time :

1.8 Sec ~ 180 Sec

Reach Compliance Code :

Compliant

Contact Current Rating :

10 A

Body Length or Diameter :

61.1 mm

Physical Dimension :

61.1mm x 45.2mm x 74.6mm

ELV :

Non-Compliant

Voltage Rating :

120 VAC

Number of Pins :

8

Contact Material :

Silver Cadmium Oxide

Application :

Various models time from 0.1 sec. to 100 min

Body Height :

74.6 mm

Mounting Type :

Socketable

Surface Mount :

No

Operating Supply Voltage :

120 VAC

Coil Power :

3000 mW

Product Type :

Timing Relays

Contact Voltage(DC)-Max :

30 V

Coil Voltage :

120 V

Features :

Repeatability + 2 % max

Brand :

TE Connectivity / AMP

HTS Code :

8536.41.00.20

Current Rating :

10 A

Product Category :

Time Delay and Timing Relays

Compliance :

CSA

Mode of Operation :

Delay on Operate

Relay Function :

DPDT

Circuit :

DPDT (2 Form C)

Lead Free :

Contains Lead

Max Operating Temperature :

55 °C

Timing Adjustment Method :

Hand Dial

Voltage Rating (AC) :

9.233 V

RoHS :

N

Series :

CB

Throw Configuration :

DPDT

Mounting Feature :

SOCKET MOUNT

Mount :

Socket

Type :

CMOS IC Time Delay Relay

Electrical Life :

100000 Cycle(s)

Timing Initiate Method :

Input Voltage

Contact Current(AC)-Max :

10 A

Min Operating Temperature :

-10 °C

Contact/Output Supply Type :

AC/DC

Base Product Number :

CB-1005

Contact Form :

DPDT (2 Form C)

Contact Current(DC)-Max :

10 A

Voltage - Supply :

120VAC

Max Voltage Rating (DC) :

30 V
