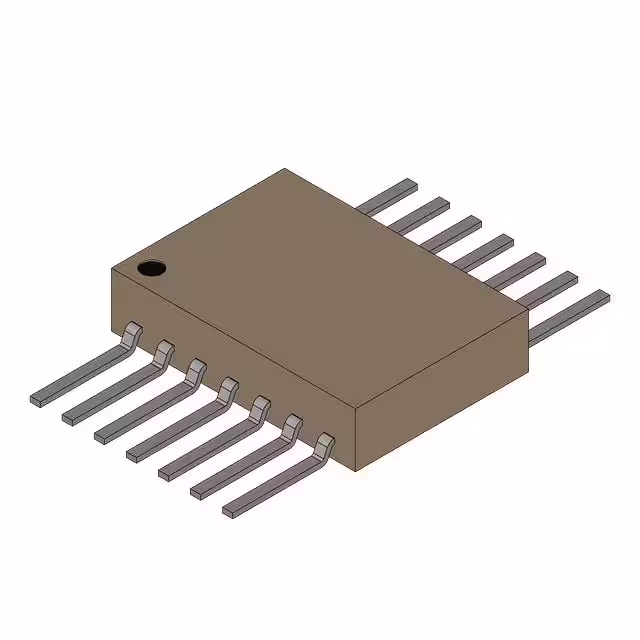

CD4001AK3

Manufacturer :

Harris Corporation

Product Category :

Gates and Inverters

Family :

4000/14000/40000

Number of Terminals :

14

Temperature Grade :

Military

JESD-30 Code :

R-PDSO-G14

Package / Case :

14-CFlatPack

Number of Functions :

4

Reach Compliance Code :

Unknown

Mounting Type :

Surface Mount

Supply Voltage-Max (Vsup) :

18 V

Terminal Position :

Dual

Features :

-

Operating Temperature :

-55°C ~ 125°C

Number of Inputs :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Product Status :

Active

Voltage - Supply :

3V ~ 12V

Max Propagation Delay @ V, Max CL :

65ns @ 10V, 15pF

Pin Count :

14

Supply Voltage-Min (Vsup) :

3 V

Current - Quiescent (Max) :

2 µA

JESD-609 Code :

e0

Package Shape :

RECTANGULAR

Terminal Form :

Gull wing

Current - Output High, Low :

-

Manufacturer :

Rochester Electronics LLC

Number of Circuits :

4

Technology :

CMOS

Logic Type :

NOR Gate

Surface Mount :

yes

Supplier Device Package :

14-CFP

Pbfree Code :

No

Logic IC Type :

NOR Gate

Package :

Bulk

Series :

-

Terminal Finish :

TIN LEAD
