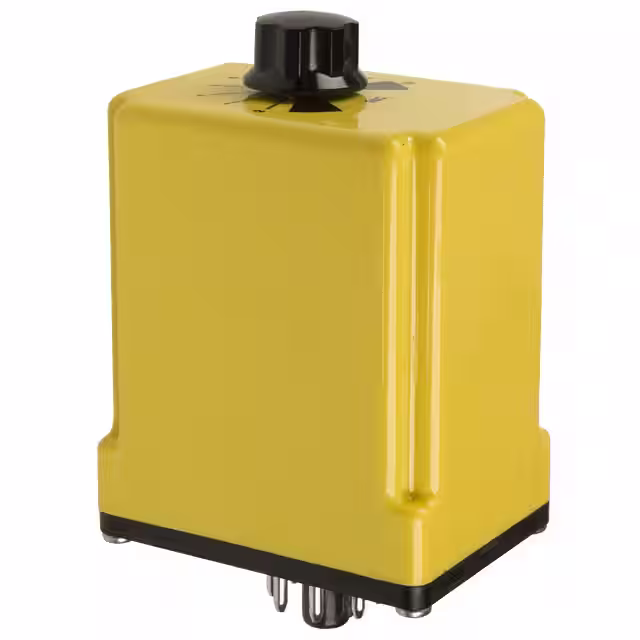

CDB-38-70001

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Time Delay Relays

Max Current Rating :

10 A

Coil Voltage (AC) :

120 V

ECCN Code :

EAR99

HTS Code :

8536.41.00.20

Termination Type :

Snap-On

Timing Adjustment Method :

Hand Dial

Function :

On-Delay

Series :

CD

Termination Style :

Plug In, 8 Pin (Octal)

Body Height :

74.6 mm

Adjustable Time Delay-Max :

1 s

RoHS :

Non-Compliant

Product Status :

Obsolete

Contact Current(AC)-Max :

10 A

Voltage - Supply :

120VAC

Coil Power :

3000 mW

Contact Rating @ Voltage :

10A @ 277VAC

Number of Pins :

8

Max Operating Temperature :

55 °C

Contact Voltage(AC)-Max :

277 V

Delay Time :

0.1 Sec ~ 1 Sec

Max Voltage Rating (AC) :

277 V

Height :

74.6 mm

Max Voltage Rating (DC) :

30 V

Relay Function :

DPDT

Timing Initiate Method :

Input Voltage

Lead Free :

Contains Lead

Contact/Output Supply Type :

AC/DC

Body Length or Diameter :

61.1 mm

Mounting Type :

Socketable

Min Operating Temperature :

-40 °C

Base Product Number :

CDB-38

Coil Voltage(AC)-Max :

120 V

Mounting Feature :

SOCKET MOUNT

Reach Compliance Code :

Unknown

Mount :

Socket

Coil Current(AC)-Max :

0.025 A

Physical Dimension :

61.1mm x 45.2mm x 74.6mm

Contact Voltage(DC)-Max :

30 V

Relay Action :

Momentary

Package :

Bulk

Circuit :

DPDT (2 Form C)

Electrical Life :

100000 Cycle(s)

Throw Configuration :

DPDT

Adjustable Time Delay-Min :

0.1 s

Contact Current(DC)-Max :

10 A

Surface Mount :

No

Body Breadth :

45.2 mm

Coil/Input Supply Type :

AC

Reference Standard :

CSA; UL

Relay Type :

ON-DELAY RELAY
