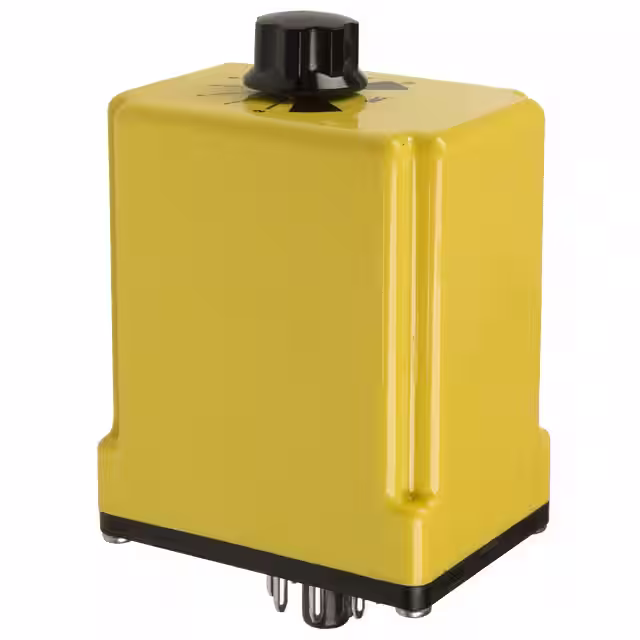

CDB-38-70006

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Time Delay Relays

Series :

CD

Timing Initiate Method :

Input Voltage

Contact Voltage(DC)-Max :

30 V

Coil/Input Supply Type :

AC

Relay Function :

DPDT

Body Length or Diameter :

61.1 mm

Function :

On-Delay

Contact Current(DC)-Max :

10 A

Contact Current(AC)-Max :

10 A

HTS Code :

8536.41.00.20

Mounting Feature :

SOCKET MOUNT

Contact Voltage(AC)-Max :

277 V

Coil Voltage(AC)-Max :

120 V

Circuit :

DPDT (2 Form C)

Timing Adjustment Method :

Hand Dial

Termination Style :

Plug In, 8 Pin (Octal)

Relay Type :

ON-DELAY RELAY

Electrical Life :

100000 Cycle(s)

Reference Standard :

CSA; UL

Physical Dimension :

61.1mm x 45.2mm x 74.6mm

Adjustable Time Delay-Max :

3 s

Mounting Type :

Socketable

Relay Action :

Momentary

Contact/Output Supply Type :

AC/DC

Product Status :

Obsolete

Adjustable Time Delay-Min :

0.3 s

Contact Rating @ Voltage :

10A @ 277VAC

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Body Height :

74.6 mm

Package :

Bulk

Delay Time :

0.3 Sec ~ 30 Sec

Coil Power :

3000 mW

Base Product Number :

CDB-38

Body Breadth :

45.2 mm

Voltage - Supply :

120VAC

Coil Current(AC)-Max :

0.025 A

Termination Type :

Snap-On

Surface Mount :

No
