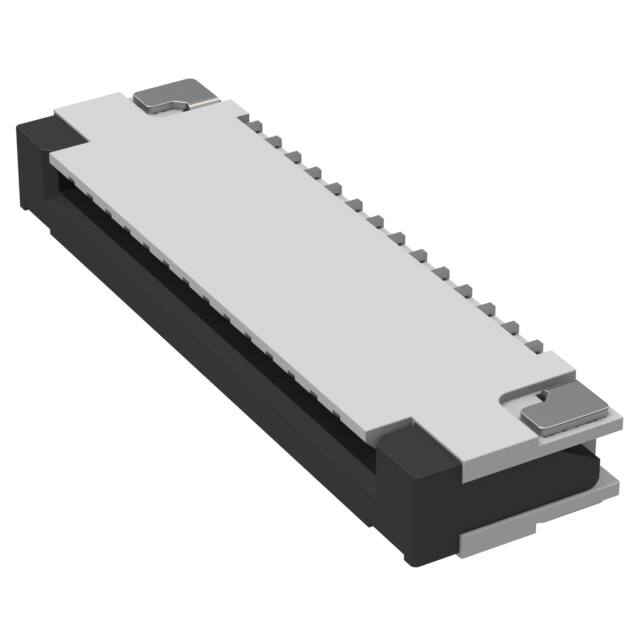

CF07141U0R0-NH
Or copy the link below:
- Mfr.Part #
- CF07141U0R0-NH
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- CF07 SERIES 1.00MM(.039") ZIF SI
- Stock
- 1,800
- In Stock ：
- 1,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Height Above Board :
- 0.102 (2.60mm)
- Series :
- CF07
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Flat Flex Type :
- FFC, FPC
- Voltage Rating :
- 100V
- FFC, FCB Thickness :
- 0.30mm
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -25°C ~ 85°C
- Locking Feature :
- Slide Lock
- Contact Finish Thickness :
- -
- Current Rating (Amps) :
- 1A
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Mating Cycles :
- -
- Housing Color :
- Natural
- Number of Positions :
- 14
- Pitch :
- 0.039 (1.00mm)
- Actuator Color :
- Black
- Contact Finish :
- Tin
- Cable End Type :
- Straight, Tapered
- Material Flammability Rating :
- UL94 V-0
- Connector/Contact Type :
- Contacts, Top
- Termination :
- Solder
- Housing Material :
- Thermoplastic, Halogen Free
- Mounting Type :
- Surface Mount, Right Angle
- Actuator Material :
- Thermoplastic, Halogen Free
- Product Status :
- Active
- Datasheets
- CF07141U0R0-NH
CF07 Series FFC, FPC Contacts, Top 0.039 (1.00mm) Solder 14 Positions Surface Mount, Right Angle Tin -25°C ~ 85°C 1A
CF07141U0R0-NH Overview
This device has a Surface Mount, Right Angle mounting type.Specifically, it is one of the products in the CF07 Series.Devices operate at -25°C ~ 85°C operating temperatures.
CF07141U0R0-NH Features
CF07 series
CF07141U0R0-NH Applications
There are a lot of Cvilux
CF07141U0R0-NH FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
