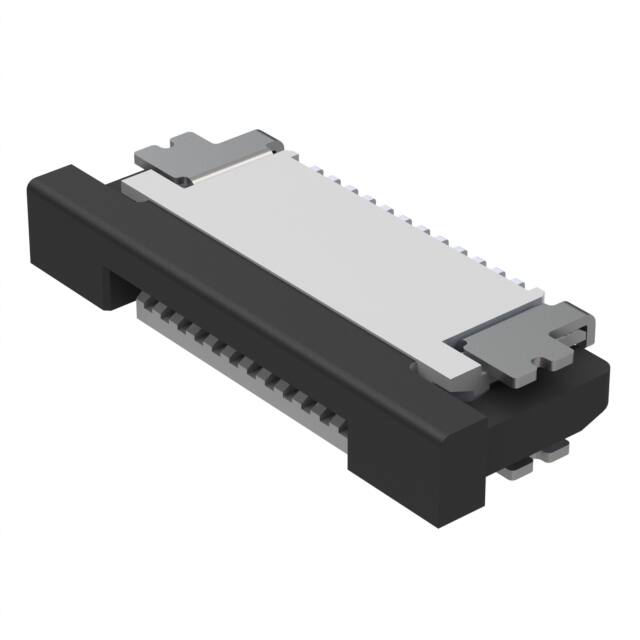

CF20121D0R0-NH
Or copy the link below:
- Mfr.Part #
- CF20121D0R0-NH
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- CF20 SERIES 0.50MM(.020") ZIF SI
- Stock
- 785
- In Stock ：
- 785
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Color :
- Natural
- Contact Finish Thickness :
- 120.0µin (3.05µm)
- Contact Finish :
- Tin
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Mounting Type :
- Surface Mount, Right Angle
- Locking Feature :
- Slide Lock
- Housing Material :
- Thermoplastic, Halogen Free
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Series :
- CF20
- Mating Cycles :
- -
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Flat Flex Type :
- FFC, FPC
- Product Status :
- Active
- Actuator Material :
- Thermoplastic, Halogen Free
- Number of Positions :
- 12
- Cable End Type :
- Straight
- Connector/Contact Type :
- Contacts, Bottom
- FFC, FCB Thickness :
- 0.30mm
- Pitch :
- 0.020 (0.50mm)
- Termination :
- Solder
- Current Rating (Amps) :
- 0.4A
- Voltage Rating :
- 50V
- Height Above Board :
- 0.079 (2.00mm)
- Operating Temperature :
- -25°C ~ 85°C
- Actuator Color :
- Black
- Datasheets
- CF20121D0R0-NH
CF20 Series FFC, FPC Contacts, Bottom 0.020 (0.50mm) Solder 12 Positions Surface Mount, Right Angle Tin -25°C ~ 85°C 0.4A
CF20121D0R0-NH Overview
There is a Surface Mount, Right Angle mounting type for the device.Product number CF20 belongs to the CF20 Series.This device operates at a temperature of -25°C ~ 85°C.
CF20121D0R0-NH Features
CF20 series
CF20121D0R0-NH Applications
There are a lot of Cvilux
CF20121D0R0-NH FFC, FPC (Flat Flexible) Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
