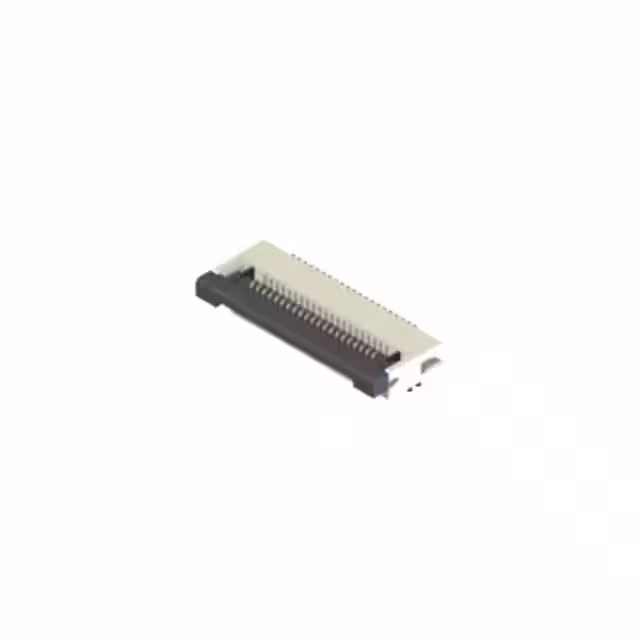

CF25121D0R0-05-NH
Or copy the link below:
- Mfr.Part #
- CF25121D0R0-05-NH
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- CF25 SERIES 0.50MM(.020") ZIF ON
- Stock
- 23,464
- In Stock ：
- 23,464
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Contact Finish :
- Tin
- Voltage Rating :
- 50V
- Cable End Type :
- Straight
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish Thickness :
- -
- Contact Material :
- Phosphor Bronze
- Connector/Contact Type :
- Contacts, Bottom
- Number of Positions :
- 12
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Housing Color :
- Natural
- Material Flammability Rating :
- UL94 V-0
- Series :
- CF25
- Mating Cycles :
- -
- Height Above Board :
- 0.087 (2.20mm)
- Pitch :
- 0.020 (0.50mm)
- Actuator Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Locking Feature :
- Slide Lock
- Operating Temperature :
- -40°C ~ 105°C
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Product Status :
- Active
- Actuator Color :
- Black
- Flat Flex Type :
- FFC, FPC
- Housing Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Current Rating (Amps) :
- 0.5A
- FFC, FCB Thickness :
- 0.30mm
- Termination :
- Solder
- Datasheets
- CF25121D0R0-05-NH
CF25 Series FFC, FPC Contacts, Bottom 0.020 (0.50mm) Solder 12 Positions Surface Mount, Right Angle Tin -40°C ~ 105°C 0.5A
CF25121D0R0-05-NH Overview
Its mounting type is Surface Mount, Right Angle.It is part of the CF25 Series of products.There is no operating temperature for the device.
CF25121D0R0-05-NH Features
CF25 series
CF25121D0R0-05-NH Applications
There are a lot of Cvilux
CF25121D0R0-05-NH FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
