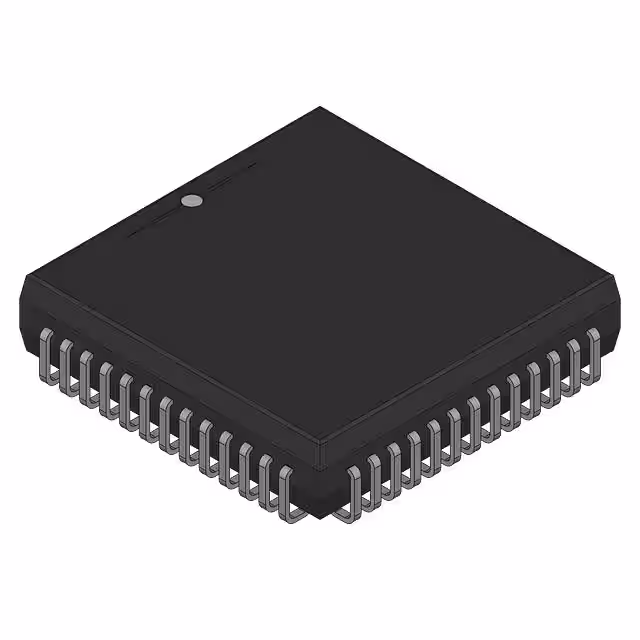

CG5982AF

Manufacturer :

Infineon Technologies

Product Category :

Memory

Write Cycle Time - Word, Page :

55ns

Operating Temperature :

-40°C ~ 115°C (TA)

Number of Terminals :

52

Mounting Type :

Surface Mount

JESD-30 Code :

S-PQCC-J52

Terminal Finish :

TIN LEAD

Package / Case :

52-LCC (J-Lead)

Voltage - Supply :

4.5V ~ 5.5V

Pin Count :

52

Reach Compliance Code :

Unknown

Memory Type :

Volatile

Package Shape :

Square

Technology :

SRAM - Dual Port, Asynchronous

Organization :

2KX8

Memory Interface :

Parallel

Pbfree Code :

No

Memory Organization :

2K x 8

Product Status :

Active

Supply Voltage-Min (Vsup) :

4.5 V

Temperature Grade :

Industrial

Operating Mode :

ASYNCHRONOUS

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package :

Bulk

Memory Format :

SRAM

Memory Density :

16384 bit

Access Time :

55 ns

Manufacturer :

Rochester Electronics LLC

Qualification Status :

COMMERCIAL

Parallel/Serial :

Parallel

Supply Voltage-Max (Vsup) :

5.5 V

Supplier Device Package :

52-PLCC (19.13x19.13)

Number of Words :

2048 words

Series :

-

Width :

19.1262 mm

JESD-609 Code :

e0

Terminal Position :

QUAD

Number of Functions :

1

Surface Mount :

yes

Length :

19.1262 mm

Terminal Form :

J BEND

Seated Height-Max :

5.08 mm

Memory Size :

16Kbit

Terminal Pitch :

1.27 mm

Base Product Number :

CG5982

Memory IC Type :

DUAL-PORT SRAM

Memory Width :

8
