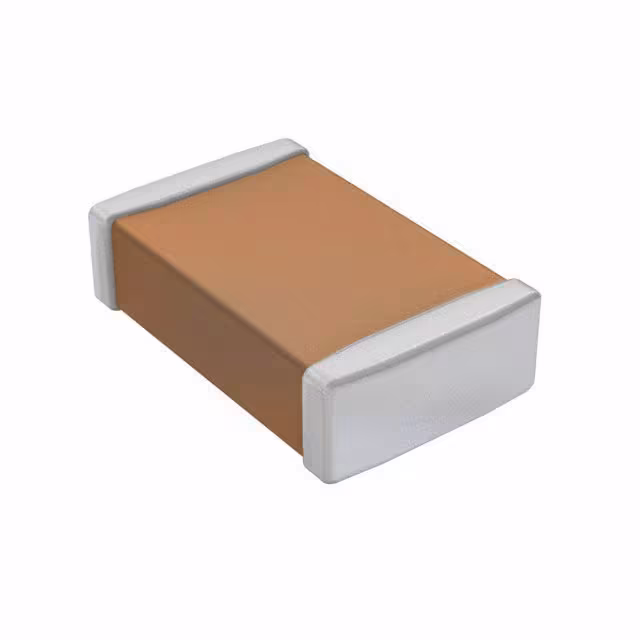

CL10B334KO8NNND

Manufacturer :

Samsung Electro-Mechanics

Product Category :

Ceramic Capacitors

Max Operating Temperature :

125°C

Voltage - Rated :

16V

Features :

-

Packing Method :

TR, CARDBOARD PAPER, 13 INCH

Height :

800μm

Voltage :

16V

Capacitance :

330nF

Temp Coeff (Dielectric) :

X7R

Temperature Characteristics Code :

X7R

Tolerance :

10%

Height - Seated (Max) :

-

Mounting Style :

Surface Mount

Product Depth (mm) :

0.8 mm

Number of Terminations :

2

Tolerance (+ or -) :

10%

Product Height (mm) :

0.8 mm

Multilayer :

yes

Voltage - Rated DC :

16V

Product Status :

Active

Length :

1.6mm

Series :

CL

Mounting Type :

Surface Mount, MLCC

Depth :

800μm

Temperature Coefficient :

15% ppm/°C

Capacitor Type :

CERAMIC CAPACITOR

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Rad Hardened :

No

Applications :

GENERAL PURPOSE

Terminal Shape :

WRAPAROUND

Radiation Hardening :

No

Pbfree Code :

yes

Lead Style :

-

Mount :

Surface Mount

Failure Rate :

Not Required

Wire Form :

Not Required

Lead Spacing :

-

JESD-609 Code :

e3

Product Diameter (mm) :

Not Required mm

Package / Case :

0603

Case Style :

Ceramic Chip

Package :

Tape and Reel (TR)

Ratings :

-

Thickness (Max) :

0.035 (0.90mm)

ECCN Code :

EAR99

Operating Temperature :

-55°C ~ 125°C

HTS Code :

8532.24.00.20

Product Length (mm) :

1.6 mm

Operating Temp Range :

-55C to 125C

Min Operating Temperature :

-55°C

RoHS Status :

RoHS Compliant

Packaging :

Tape and Reel (TR)

Dielectric :

X7R

Thickness :

889μm

Size / Dimension :

0.063 L x 0.031 W (1.60mm x 0.80mm)

Width :

787.4μm

Construction :

SMT Chip
