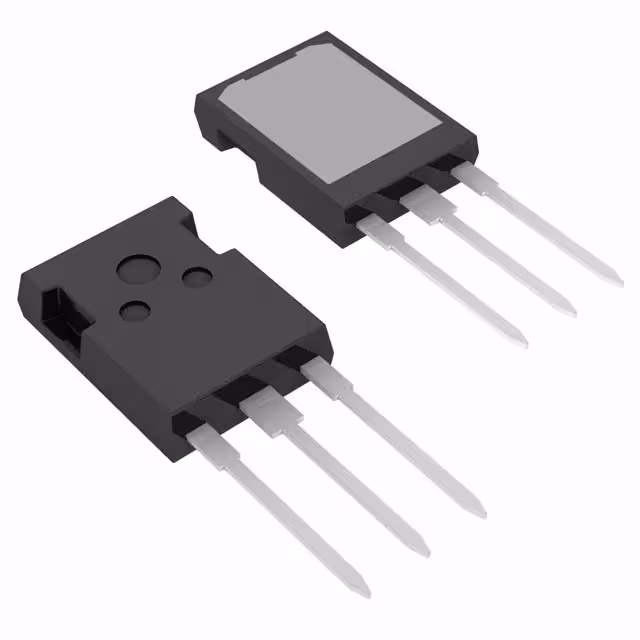

CMA40E1600HR

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs

Mounting Style :

Through Hole

Package / Case :

TO-247-3

Mounting Type :

Through Hole

Current - Hold (Ih) (Max) :

100mA

Current - On State (It (AV)) (Max) :

40A

Packaging :

Tube

Supplier Device Package :

ISO247

Current - Non Rep. Surge 50, 60Hz (Itsm) :

550A 595A

Brand :

IXYS

Base Product Number :

CMA40

Product Type :

SCRs

Voltage - Off State :

1.6kV

RoHS :

Details

Voltage - Gate Trigger (Vgt) (Max) :

1.5V

Manufacturer :

IXYS

Series :

CMA40E1600HR

Reach Compliance Code :

Compliant

Product Category :

SCRs

Minimum Operating Temperature :

- 55 C

Factory Lead Time :

20 Weeks

Subcategory :

Thyristors

Vf - Forward Voltage :

1.23 V

ECCN Code :

EAR99

SCR Type :

Standard Recovery

Voltage - On State (Vtm) (Max) :

1.23V

Current - Gate Trigger (Igt) (Max) :

50mA

Product Status :

Active

Current - On State (It (RMS)) (Max) :

63A

Maximum Operating Temperature :

+ 125 C

Operating Temperature :

-55°C~150°C TJ

Trigger Device Type :

SCR

Package :

Tube
