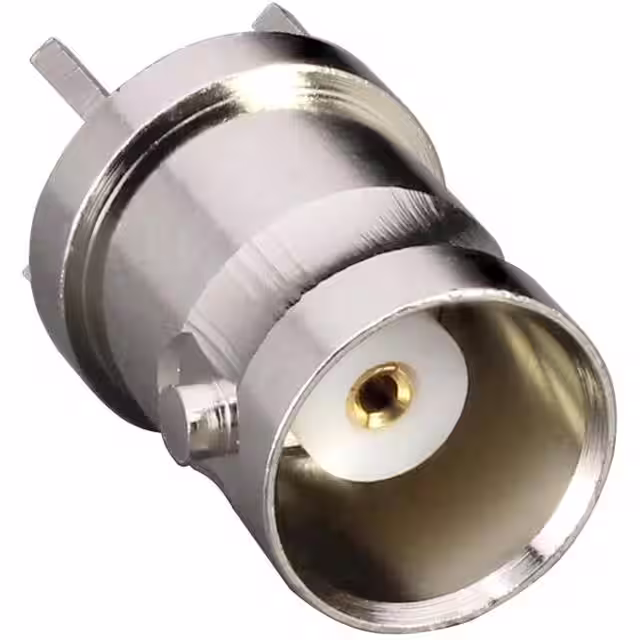

CONBNC001
Or copy the link below:
- Mfr.Part #
- CONBNC001
- Manufacturer
- Linx Technologies
- Package / Case
- Datasheet
- Download
- Description
- BNC CONNECTOR JACK, FEMALE SOCKE
- Stock
- 200
- In Stock ：
- 200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Linx Technologies
- Product Category :
- Coaxial Connector (RF) Assemblies
- Product :
- Connectors
- Product Status :
- Active
- Subcategory :
- RF Interconnects
- Termination Style :
- Solder
- Contact Termination :
- Solder
- Fastening Type :
- Bayonet Lock
- Center Contact Plating :
- Gold
- Connector Type :
- Jack, Female Socket
- Maximum Operating Temperature :
- + 165 C
- Base Product Number :
- CONBNC
- Body Style :
- Bulkhead
- Connector Style :
- BNC
- Gender :
- Jack (Socket)
- Polarity :
- Standard
- Housing Color :
- Silver
- Center Contact Material :
- Brass
- Frequency - Max :
- 3 GHz
- Product Type :
- RF Connectors / Coaxial Connectors
- Orientation :
- Straight
- Ingress Protection :
- -
- Mating Cycles :
- -
- Contact Material :
- Brass
- Product Category :
- RF Connectors / Coaxial Connectors
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Cable Group :
- -
- Frequency :
- 0 GHz to 3 GHz
- Mounting Type :
- Through Hole
- Isolation :
- Isolated
- Series :
- -
- RF Series :
- BNC
- Contact Plating :
- Gold
- Body Material :
- Brass
- RoHS :
- Details
- Insertion Loss :
- -
- Features :
- -
- Operating Temperature Range :
- - 65 C to + 165 C
- Package :
- Tray
- Packaging :
- Tray
- Number of Ports :
- 1
- Operating Temperature :
- -65°C ~ 165°C
- Includes :
- -
- Impedance :
- 50Ohm
- Body Finish :
- Nickel
- Brand :
- Linx Technologies
- Mounting Style :
- PCB Mount
- Minimum Operating Temperature :
- - 65 C
- Manufacturer :
- Linx Technologies
- Mounting Feature :
- -
- Shield Termination :
- Solder
- Datasheets
- CONBNC001
Jack, Female Socket Bayonet Lock 50Ohm Tray BNC Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C ~ 165°C
CONBNC001 Overview
Packaging is Jack, Female Socket.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the - Series.A variety of tasks can be performed using its 1 ports.Devices operate at -65°C ~ 165°C operating temperatures.A good performance can be achieved at a frequency of 0 GHz to 3 GHz, as long as it is operated at a low power consumption.
CONBNC001 Features
- series
CONBNC001 Applications
There are a lot of Linx Technologies Inc.
CONBNC001 Coaxial Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
