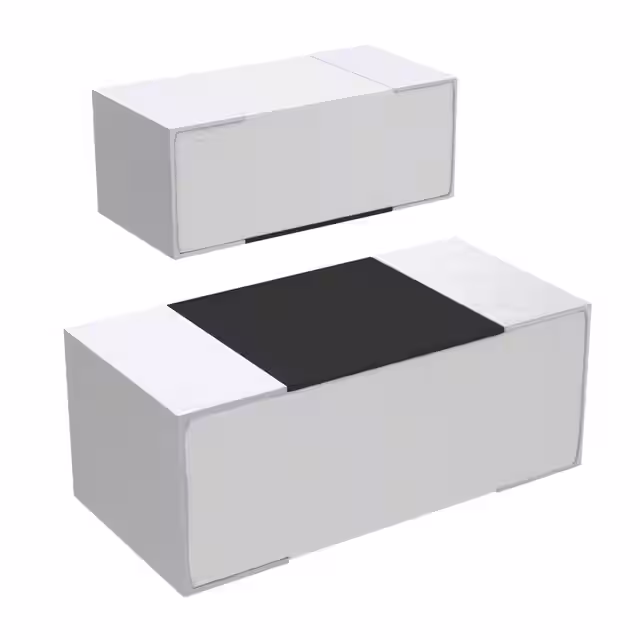

CRG0402F39R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Chip Resistor - Surface Mount

Product Height (mm) :

0.35(mm)

Mounting Style :

PCB Mount

Working Voltage :

50 V

Current Sensing :

No

Military Standard :

Not Required

Surface Mount :

yes

Reach Compliance Code :

Compliant

Package / Case :

0402

Package Height :

0.35 mm

Lead Spacing (nom) :

Not Required(mm)

Minimum Operating Temperature :

- 55 C

Size Code :

0402

RoHS :

Details

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Height :

0.35 mm

Product :

Thick Film Resistors SMD

Features :

-

Rated Temperature :

70 °C

Rated Power Dissipation (P) :

0.063 W

Construction :

RECTANGULAR

Type :

Thick Film

Package :

Retail Package

Length :

1 mm

Product Category :

Thick Film Resistors - SMD

Power (Watts) :

0.063W, 1/16W

Resistance Tolerance :

1

Terminal Shape :

WRAPAROUND

Product Type :

Thick Film Resistors

Factory Lead Time :

21 Weeks

Package Shape :

RECTANGULAR PACKAGE

Tolerance :

1 %

Additional Feature :

LASER TRIMMABLE

Composition :

Thick Film

Series :

*

JESD-609 Code :

e3

Case Style :

Molded

Base Product Number :

CRG0402

Package Length :

1 mm

Product Width :

0.5 mm

Product Length :

1 mm

Size / Dimension :

0.039 L x 0.020 W (1.00mm x 0.50mm)

Resistor Type :

High Power

Product Length (mm) :

1(mm)

Number of Terminals :

2

Temperature Range @ Derated Power :

70 TO 155

Packing Method :

TR

Voltage Rating :

50 V

Height - Seated (Max) :

0.016 (0.40mm)

Product Depth (mm) :

0.5(mm)

Case Size :

0402

Subcategory :

Resistors

Package Type :

SMD

Failure Rate :

Not Required

Tolerance (+ or -) :

1%

Product Status :

Active

Brand :

TE Connectivity / Holsworthy

Temperature Coefficient :

100.0000 ppm/°C

Operating Temp Range :

-55C to 155C

Technology :

Thick Film

Width :

0.5 mm

Supplier Device Package :

0402

Qualification :

-

Packaging :

Tape and Reel

Anti-Sulfurated :

No

Pbfree Code :

yes

Power Rating(s) :

0.063 (1/16)(W)

Manufacturer :

TE Connectivity

Operating Temperature :

-55°C ~ 155°C

Resistance :

39 Ohm

Maximum Operating Temperature :

+ 125 C

Number of Terminations :

2

Package Width :

0.5 mm

Anti-Surge :

No

Power Rating :

0.0625 W

Product Diameter (mm) :

Not Required(mm)

Mounting Feature :

Surface Mount

Termination Style :

Pad
