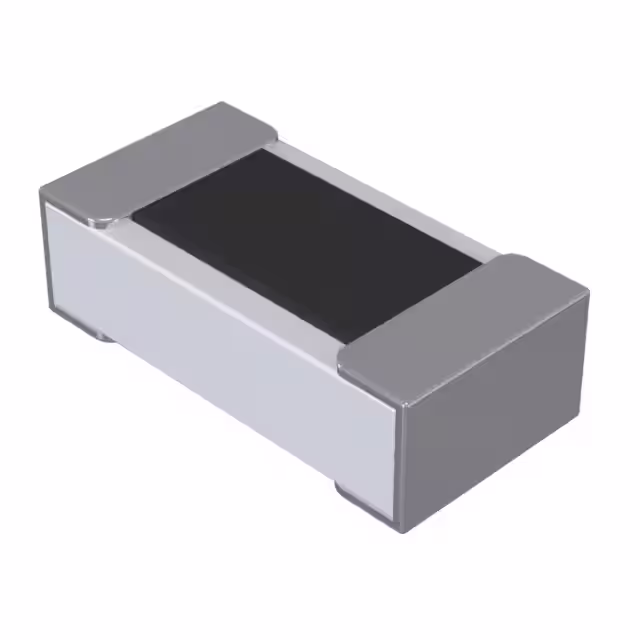

CRGP0402F100K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Chip Resistor - Surface Mount

Product Diameter (mm) :

Not Required(mm)

Product Type :

Thick Film Resistors

Product Status :

Active

Operating Temperature :

-55°C ~ 155°C

Composition :

Thick Film

Military Standard :

Not Required

Resistance :

100000(ohm)

Package/Case :

0402 (1005M)

Series :

CRGP

Current Sensing :

No

Technology :

Thick Film

Manufacturer :

TE Connectivity

RoHS :

Details

Product Depth (mm) :

0.5(mm)

Height :

0.35 mm

Case Size :

0402

Product Length (mm) :

1.1(mm)

Application :

Commercial Grade

Anti-Surge :

No

Product :

Thick Film Resistors General Purpose

Product Category :

Thick Film Resistors - SMD

Power Rating(s) :

0.125 (1/8)(W)

Base Product Number :

CRGP0402

Power (Watts) :

0.125W, 1/8W

Tolerance :

±1%

Package / Case :

0402

Height - Seated (Max) :

0.016 (0.40mm)

Length :

1.1 mm

Size / Dimension :

0.043 L x 0.020 W (1.10mm x 0.50mm)

Product Height (mm) :

0.35(mm)

Supplier Device Package :

0402

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Tolerance (+ or -) :

1%

Operating Temp Range :

-55C to 155C

Termination Style :

Pad

Maximum Operating Temperature :

+155°C

Width :

0.5 mm

Voltage Rating :

50 V

Packaging :

Tape and Reel

Number of Terminals :

2

Anti-Sulfurated :

No

Temperature Range @ Derated Power :

70 TO 155

Power Rating :

0.12W

Mounting Style :

PCB Mount

Failure Rate :

Not Required

Package Type :

SMD

Lead Spacing (nom) :

Not Required(mm)

Features :

Pulse Withstanding

Temperature Coefficient :

±100(ppm/°C)

Subcategory :

Resistors

Brand :

TE Connectivity / Holsworthy

Number of Terminations :

2

Type :

Thick Film

Construction :

RECTANGULAR

Minimum Operating Temperature :

-55°C
