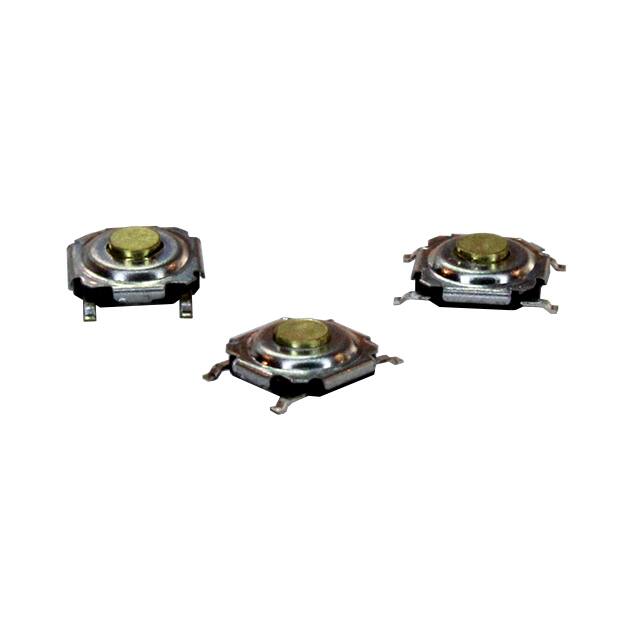

CS1204AF260

Manufacturer :

CIT Relay and Switch

Product Category :

Actuator Height off PCB, Vertical :

1.50mm

Illumination Voltage (Nominal) :

-

Mechanical Life :

-

Termination Style :

Gull wing

Actuator Length, Right Angle :

-

Switch Travel :

0.25mm

Series :

CS1204

Actuator Material :

Brass

Operating Force :

260gf

Contact Rating @ Voltage :

0.05A @ 50VDC

Mounting Type :

Surface Mount

Switch Function :

Off-Mom

Base Product Number :

CS1204

Illumination Type, Color :

-

Circuit :

SPST-NO

Actuator Orientation :

Top Actuated

Actuator Type :

Standard

Features :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Temperature :

-40°C ~ 85°C

RoHS :

yes

Ingress Protection :

-

Illumination :

Non-Illuminated

Outline :

5.20mm x 5.20mm

Product Status :

Active
