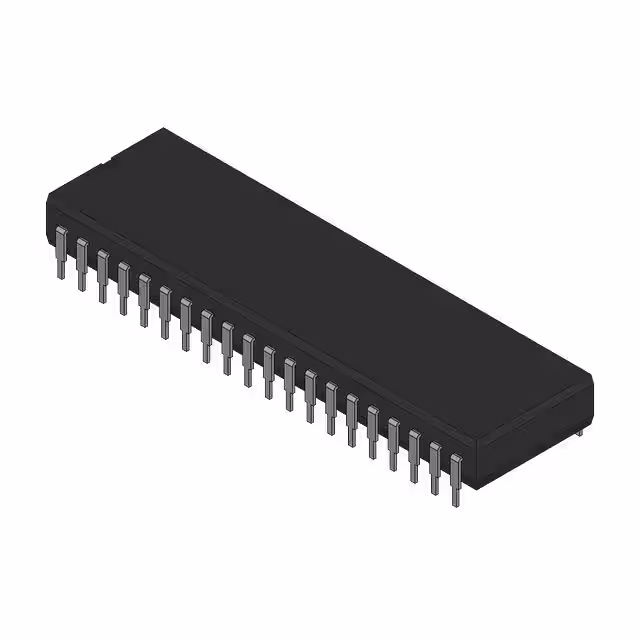

CS5016-TD16

Manufacturer :

Cirrus Logic

Product Category :

Analog to Digital Converters (ADC)

Pbfree Code :

No

Operating Temperature :

-40°C ~ 85°C

Number of Inputs :

1

Data Interface :

Parallel

Output Bit Code :

BINARY, OFFSET BINARY

Package / Case :

44-LCC (J-Lead)

Number of Terminals :

40

Package :

Bulk

Conversion Time-Max :

16.25 µs

Series :

-

Reach Compliance Code :

Unknown

Sampling Rate (Per Second) :

50k

Length :

52.32 mm

Technology :

CMOS

HTS Code :

8542.39.00.01

Reference Type :

External

Seated Height-Max :

5.84 mm

Voltage - Supply, Digital :

4.5V ~ 5V

Sample and Hold / Track and Hold :

TRACK

Output Format :

SERIAL, PARALLEL, WORD

Number of Analog In Channels :

1

ECCN Code :

3A001.A.2.C

Supplier Device Package :

44-PLCC (16.59x16.59)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Analog Input Voltage-Min :

-2.5 V

Surface Mount :

No

JESD-609 Code :

e0

Ratio - S/H:ADC :

1:1

Configuration :

S/H-ADC

JESD-30 Code :

R-GDIP-T40

Terminal Position :

Dual

Linearity Error-Max (EL) :

0.0015%

Package Shape :

RECTANGULAR

Number of Bits :

16

Input Type :

Single Ended

Voltage - Supply, Analog :

4.5V ~ 5V

Architecture :

SAR

Terminal Pitch :

2.54 mm

Analog Input Voltage-Max :

5 V

Negative Supply Voltage-Nom :

-5 V

Temperature Grade :

Military

Pin Count :

40

Terminal Finish :

TIN LEAD

Terminal Form :

THROUGH-HOLE

Features :

-

Mounting Type :

Surface Mount

Number of Functions :

1

Product Status :

Active

Number of A/D Converters :

1

Width :

15.24 mm

Converter Type :

ADC, SUCCESSIVE APPROXIMATION

Manufacturer :

Rochester Electronics LLC
