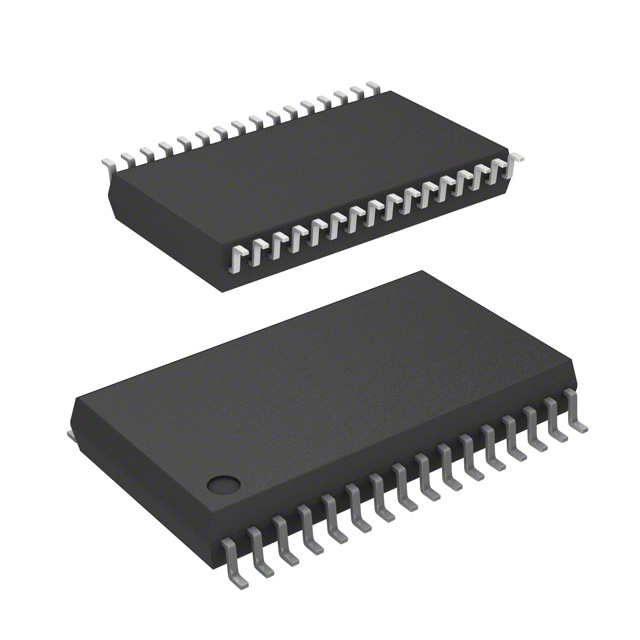

CS5301GDWR32

Manufacturer :

onsemi

Product Category :

DC DC Switching Controllers

Terminal Position :

Dual

JESD-30 Code :

R-PDSO-G32

Surface Mount :

yes

Serial Interfaces :

-

Manufacturer :

Rochester Electronics LLC

Temperature Grade :

COMMERCIAL

Reach Compliance Code :

Unknown

Function :

Step-Down

Control Mode :

VOLTAGE-MODE

Terminal Finish :

TIN LEAD

Frequency - Switching :

250kHz ~ 800kHz

Supplier Device Package :

32-SOIC, WB

Topology :

Buck

JESD-609 Code :

e0

Output Current-Max :

1.5 A

Number of Functions :

1

Duty Cycle (Max) :

-

Package Shape :

RECTANGULAR

Terminal Form :

Gull wing

Operating Temperature :

0°C ~ 70°C (TA)

Peak Reflow Temperature (Cel) :

240

Terminal Pitch :

1.27 mm

Pbfree Code :

No

Base Product Number :

CS5301

Package / Case :

32-SOIC (0.295, 7.50mm Width)

Series :

-

Width :

7.5 mm

Number of Outputs :

3

Synchronous Rectifier :

yes

Qualification Status :

COMMERCIAL

Input Voltage-Nom :

5 V

Pin Count :

32

Voltage - Supply (Vcc/Vdd) :

4.3V ~ 20V

Control Technique :

PULSE WIDTH MODULATION

Analog IC - Other Type :

SWITCHING CONTROLLER

Additional Feature :

Current

Clock Sync :

No

Output Phases :

3

Control Features :

Current Limit, Frequency Control, Power Good

Length :

20.725 mm

Switching Frequency-Max :

1000 kHz

Switcher Configuration :

PHASE-SHIFT

Number of Terminals :

32

Mounting Type :

Surface Mount

Output Configuration :

Positive

Package :

Bulk

Product Status :

Obsolete

Output Type :

Transistor Driver

Seated Height-Max :

2.54 mm
