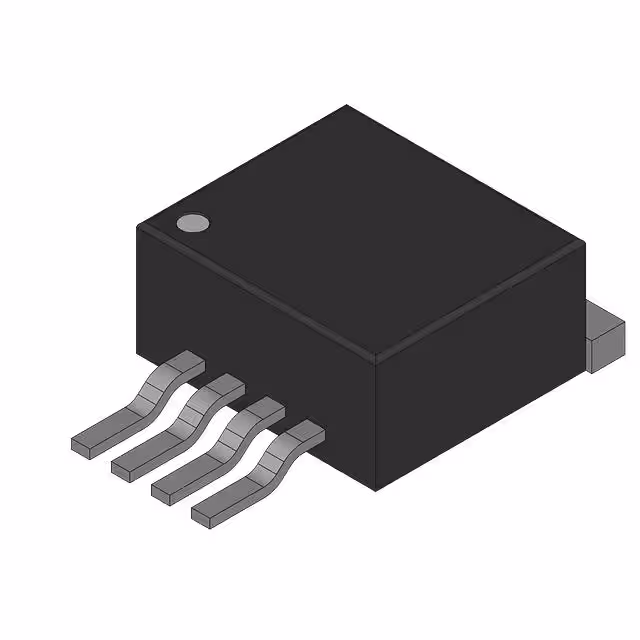

CS8281YDP5

Manufacturer :

onsemi

Product Category :

Voltage Regulators - Linear

Operating Temperature TJ-Min :

-40°C

Number of Terminations :

5

Input Voltage Absolute-Max :

74V

ECCN Code :

EAR99

Load Regulation-Max(%) :

0.05%

Output Current1-Max :

0.25A

Surface Mount :

yes

Input Voltage (Min) :

6V

Dropout Voltage1-Nom :

0.4V

Input Voltage (Max) :

26V

Output Voltage 2 :

5V

Output Voltage 1 :

5V

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Outputs :

2

Operating Temperature TJ-Max :

150°C

Terminal Position :

Single

JESD-609 Code :

e0

Lead Free :

Contains Lead

Output Voltage1-Max :

5.15V

Pbfree Code :

No

Output Voltage1-Min :

4.85V

Adjustability :

FIXED

Package / Case :

D2PAK

RoHS Status :

RoHS Compliant

HTS Code :

8542.39.00.01

Number of Functions :

1

JESD-30 Code :

R-PSSO-G5

Voltage Tolerance-Max :

3%

Terminal Pitch :

1.7mm

Output Current2-Max :

0.1A

Pin Count :

5

Terminal Form :

Gull wing

Qualification Status :

Not Qualified
