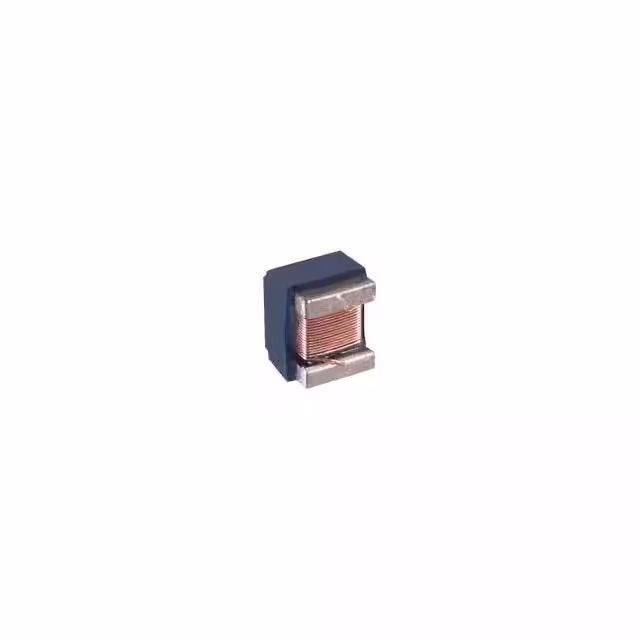

CT1008CSF-221K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

HTS Code :

8504.50.80.00

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductance-Nom (L) :

0.22 µH

ECCN Code :

EAR99

Type :

Wirewound

Reach Compliance Code :

Compliant

Terminal Finish :

Matte Tin (Sn)

Number of Terminals :

2

Tolerance :

10%

Product Status :

Active

Terminal Shape :

ONE SURFACE

JESD-609 Code :

e3

Pbfree Code :

yes

Inductance :

220 nH

Number of Functions :

1

Rated Current-Max :

0.5 A

Test Frequency :

25 MHz

Special Feature :

Q MEASURED AT 100 MHZ

Shape/Size Description :

RECTANGULAR PACKAGE

Case/Size Code :

1008

Series :

ct1008csf

Terminal Placement :

DUAL ENDED

Package :

Tape and Reel (TR)

Core Material :

Ceramic

Shielded :

No

DC Resistance :

0.84 Ω

Quality Factor-Min (at L-nom) :

45

Surface Mount :

yes

Frequency - Self Resonant :

700MHz

Operating Temperature :

-40°C ~ 125°C

Mounting Type :

Surface Mount

DC Resistance (DCR) :

840mOhm

Inductor Application :

RF INDUCTOR
