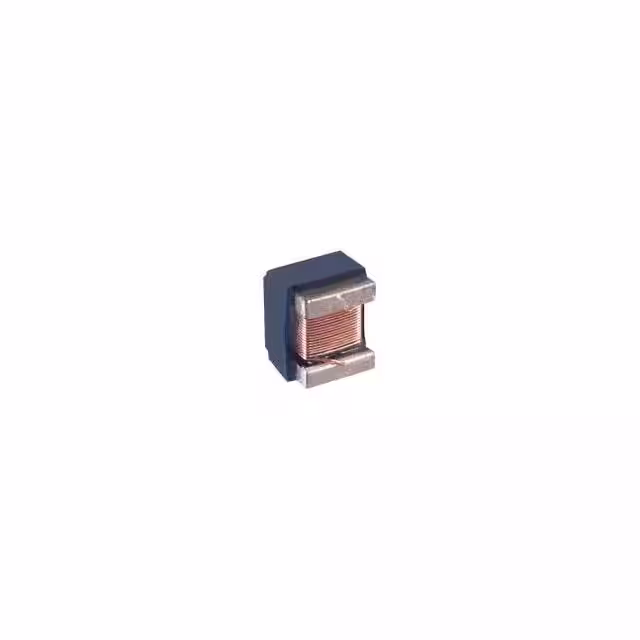

CT1008CSF-271M

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Inductor Application :

RF INDUCTOR

Series :

ct1008csf

Terminal Placement :

DUAL ENDED

Product Status :

Active

Terminal Shape :

ONE SURFACE

Tolerance :

20%

Package :

Tape and Reel (TR)

Case/Size Code :

1008

HTS Code :

8504.50.80.00

Shielded :

No

Number of Terminals :

2

Quality Factor-Min (at L-nom) :

45

Test Frequency :

25 MHz

Operating Temperature :

-40°C ~ 125°C

Surface Mount :

yes

Rated Current-Max :

0.5 A

Number of Functions :

1

Reach Compliance Code :

Compliant

Inductance :

270 nH

Terminal Finish :

Matte Tin (Sn)

Mounting Type :

Surface Mount

ECCN Code :

EAR99

DC Resistance :

0.91 Ω

Pbfree Code :

yes

Inductor Type :

GENERAL PURPOSE INDUCTOR

Shape/Size Description :

RECTANGULAR PACKAGE

Special Feature :

Q MEASURED AT 100 MHZ

Inductance-Nom (L) :

0.27 µH

JESD-609 Code :

e3

Frequency - Self Resonant :

600MHz

Core Material :

Ceramic

Type :

Wirewound

DC Resistance (DCR) :

910mOhm
