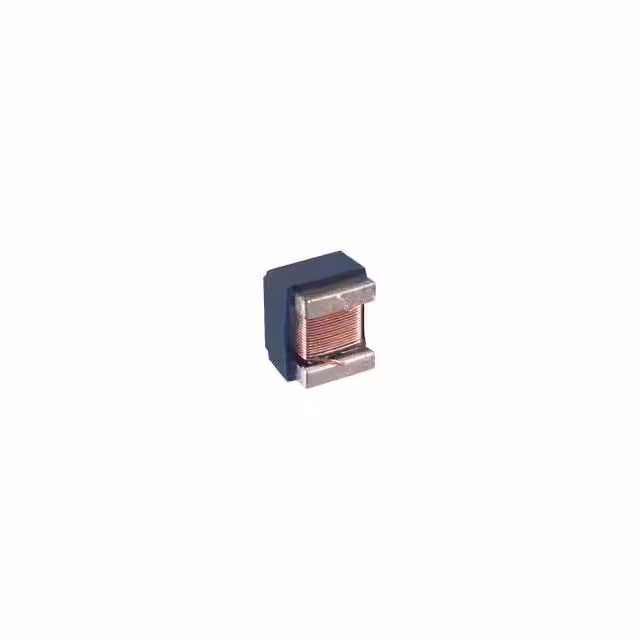

CT1008CSF-561K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Frequency - Self Resonant :

415MHz

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 125°C

JESD-609 Code :

e3

Tolerance :

10%

Inductance :

560 nH

HTS Code :

8504.50.80.00

DC Resistance (DCR) :

1.3Ohm

Pbfree Code :

yes

Reach Compliance Code :

Compliant

DC Resistance :

1.3 Ω

Terminal Finish :

Matte Tin (Sn)

Terminal Shape :

ONE SURFACE

Series :

ct1008csf

Shape/Size Description :

RECTANGULAR PACKAGE

Package :

Tape and Reel (TR)

ECCN Code :

EAR99

Case/Size Code :

1008

Product Status :

Active

Type :

Wirewound

Number of Functions :

1

Inductance-Nom (L) :

0.56 µH

Terminal Placement :

DUAL ENDED

Test Frequency :

25 MHz

Shielded :

No

Number of Terminals :

2

Rated Current-Max :

0.4 A

Special Feature :

Q MEASURED AT 100 MHZ

Inductor Application :

RF INDUCTOR

Inductor Type :

GENERAL PURPOSE INDUCTOR

Quality Factor-Min (at L-nom) :

45

Surface Mount :

yes

Core Material :

Ceramic
