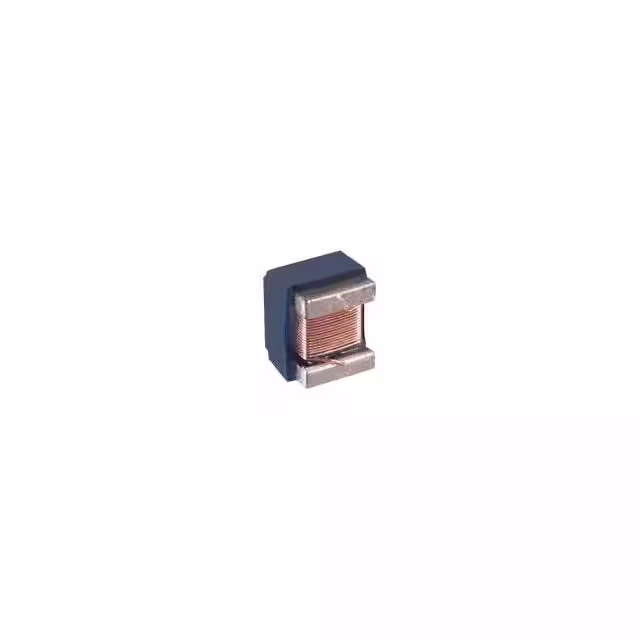

CT1008CSF-621K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

JESD-609 Code :

e3

Quality Factor-Min (at L-nom) :

45

Number of Functions :

1

DC Resistance (DCR) :

1.4Ohm

ECCN Code :

EAR99

Core Material :

Ceramic

DC Resistance :

1.4 Ω

Reach Compliance Code :

Compliant

Series :

ct1008csf

Terminal Finish :

Matte Tin (Sn)

Mounting Type :

Surface Mount

HTS Code :

8504.50.80.00

Frequency - Self Resonant :

375MHz

Type :

Wirewound

Operating Temperature :

-40°C ~ 125°C

Pbfree Code :

yes

Number of Terminals :

2

Package :

Tape and Reel (TR)

Surface Mount :

yes

Manufacturer :

Central Technologies

Special Feature :

Q MEASURED AT 100 MHZ

Rated Current-Max :

0.3 A

Shielded :

No

Tolerance :

±10%

Product Status :

Active

Terminal Shape :

ONE SURFACE

Inductance-Nom (L) :

0.62 µH

Terminal Placement :

DUAL ENDED

Inductance :

620 nH

Test Frequency :

25 MHz

Case/Size Code :

1008

Shape/Size Description :

RECTANGULAR PACKAGE

Inductor Application :

RF INDUCTOR

Inductor Type :

GENERAL PURPOSE INDUCTOR
