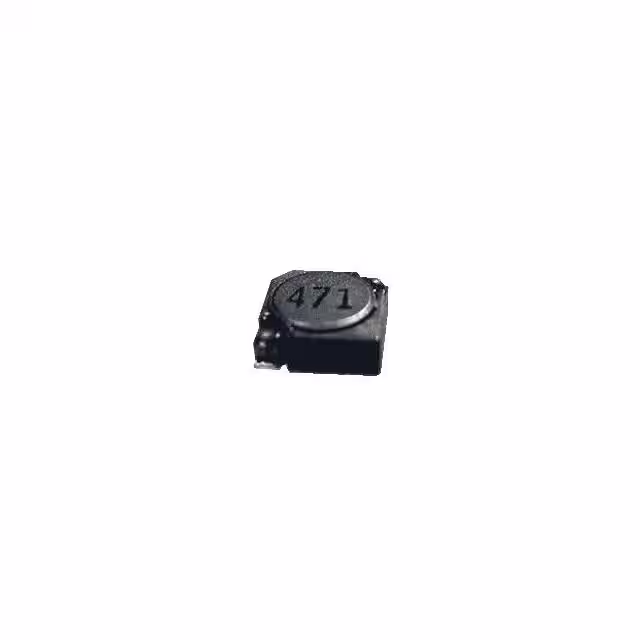

CTCDC5D23F-180K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Package / Case :

Nonstandard

Package :

Tape and Reel (TR)

Terminal Placement :

DUAL ENDED

Size / Dimension :

0.236 L x 0.236 W (6.00mm x 6.00mm)

Shape/Size Description :

RECTANGULAR PACKAGE

Features :

-

Inductance :

18 µH

Number of Terminals :

2

Shielding :

Shielded

Supplier Device Package :

-

Pbfree Code :

yes

HTS Code :

8504.50.80.00

DC Resistance :

0.213 Ω

Height - Seated (Max) :

0.098 (2.50mm)

Q @ Freq :

-

ECCN Code :

EAR99

Inductor Application :

POWER INDUCTOR

Inductance Frequency - Test :

100 kHz

Inductor Type :

GENERAL PURPOSE INDUCTOR

Terminal Shape :

ONE SURFACE

Frequency - Self Resonant :

-

Tolerance :

10%

Surface Mount :

yes

Operating Temperature :

-30°C ~ 100°C

Reach Compliance Code :

Compliant

Rated Current-Max :

0.77 A

Material - Core :

-

Shielded :

yes

Product Status :

Active

Mounting Type :

Surface Mount

Current - Saturation (Isat) :

770mA

Ratings :

-

DC Resistance (DCR) :

213mOhm Max

Inductance-Nom (L) :

18 µH

Test Frequency :

0.1 MHz

Series :

CTCDC5D23F

Type :

-

Number of Functions :

1
