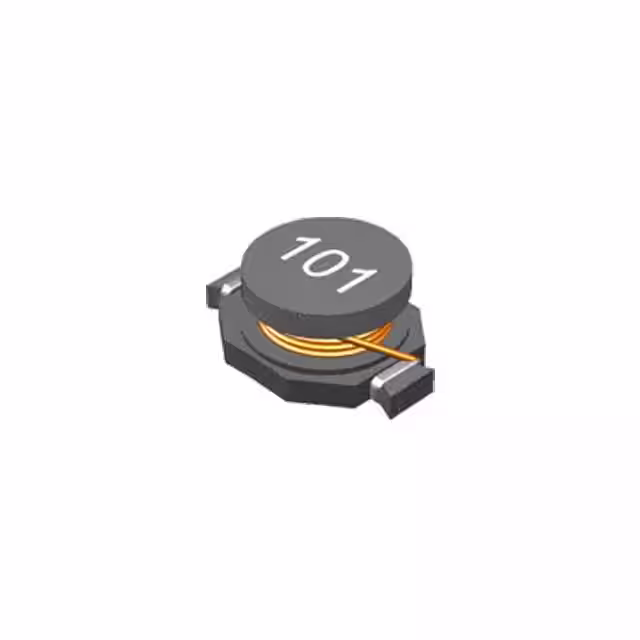

CTDO1813PF-333HC

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Reach Compliance Code :

Compliant

Inductor Application :

POWER INDUCTOR

Terminal Finish :

Matte Tin (Sn)

DC Resistance :

0.36 Ω

Test Frequency :

0.1 MHz

Current Rating (Amps) :

820 mA

ECCN Code :

EAR99

Supplier Device Package :

-

Package / Case :

Nonstandard

HTS Code :

8504.50.80.00

Inductance Frequency - Test :

100 kHz

Type :

Wirewound

Features :

-

Number of Functions :

1

Pbfree Code :

yes

Terminal Shape :

ONE SURFACE

Manufacturer :

Central Technologies

Current - Saturation (Isat) :

990mA

Inductance :

33 µH

Material - Core :

-

Q @ Freq :

-

JESD-609 Code :

e3

DC Resistance (DCR) :

360mOhm Max

Shape/Size Description :

RECTANGULAR PACKAGE

Inductor Type :

GENERAL PURPOSE INDUCTOR

Shielded :

No

Series :

CTDO1813HCF

Height - Seated (Max) :

0.197" (5.00mm)

Package :

Tape and Reel (TR)

Surface Mount :

yes

Tolerance :

±20%

Operating Temperature :

-40°C ~ 85°C

Product Status :

Active

Number of Terminals :

2

Size / Dimension :

0.350" L x 0.240" W (8.89mm x 6.10mm)

Ratings :

-

Terminal Placement :

DUAL ENDED

Shielding :

Unshielded

Frequency - Self Resonant :

20MHz

Inductance-Nom (L) :

33 µH

Mounting Type :

Surface Mount
