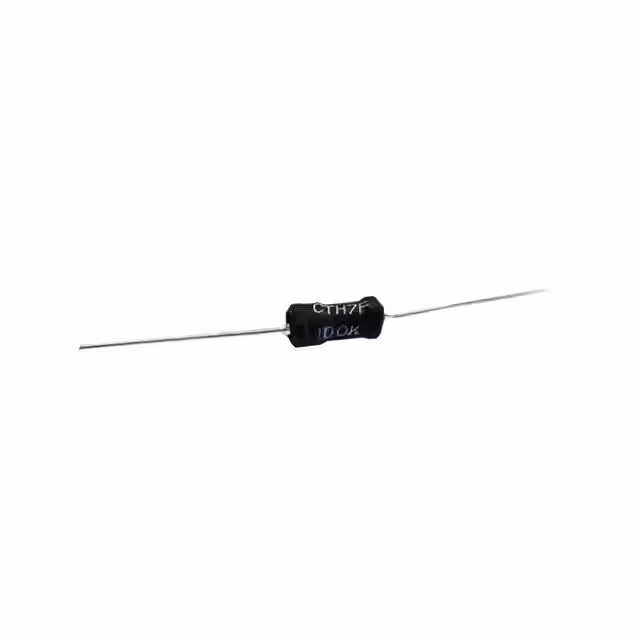

CTH7F-101K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Ratings :

-

Terminal Placement :

Axial

Q @ Freq :

-

Product Status :

Active

Reach Compliance Code :

Compliant

Shielding :

Unshielded

JESD-609 Code :

e3

Terminal Finish :

Matte Tin (Sn)

Shape/Size Description :

TUBULAR PACKAGE

Packing Method :

TR

Type :

-

Rated Current-Max :

0.63 A

Size / Dimension :

0.290" Dia x 0.602" L (7.37mm x 15.30mm)

Operating Temperature :

-55°C ~ 125°C

Construction :

Tubular

Number of Functions :

1

Surface Mount :

No

Current - Saturation (Isat) :

1.2A

Material - Core :

-

Package :

Tape and Reel (TR)

Pbfree Code :

yes

Inductance :

100 µH

Inductance Frequency - Test :

1 kHz

Inductance-Nom (L) :

100 µH

Supplier Device Package :

Axial

Number of Terminals :

2

Features :

-

Current Rating (Amps) :

630 mA

Lead Diameter :

0.813 mm

DC Resistance (DCR) :

210mOhm Max

HTS Code :

8504.50.80.00

Series :

CTH7F

Height - Seated (Max) :

-

Inductor Type :

GENERAL PURPOSE INDUCTOR

Package Length :

15.3 mm

Shielded :

No

Inductor Application :

POWER INDUCTOR

Frequency - Self Resonant :

3MHz

Lead Length :

23.9 mm

Test Frequency :

0.001 MHz

ECCN Code :

EAR99

Manufacturer :

Central Technologies

Terminal Shape :

Wire

Mounting Type :

Through Hole

Package / Case :

Axial

Tolerance :

±10%

DC Resistance :

0.21 Ω
