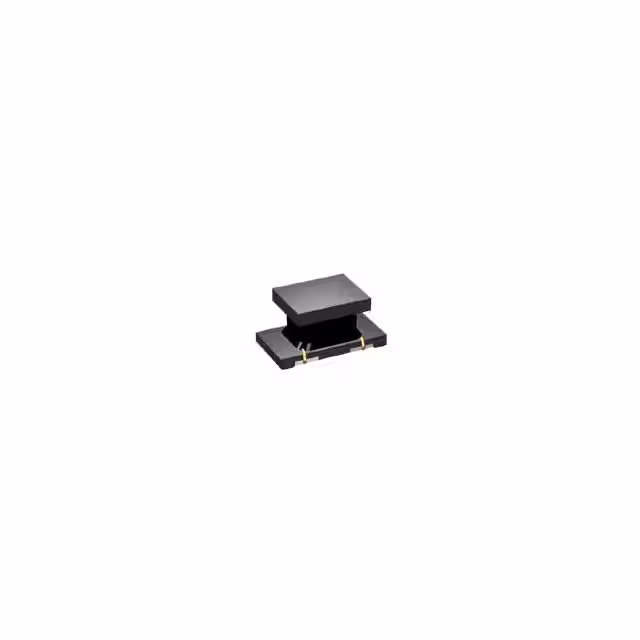

CTLQ1206NF-101K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Type :

Wirewound

Quality Factor-Min (at L-nom) :

40

DC Resistance :

15.6 Ω

Inductor Application :

DC-DC Converter

Shielded :

No

HTS Code :

8504.50.80.00

ECCN Code :

EAR99

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductance :

100 µH

Operating Temperature :

-25°C ~ 85°C

Width :

10 mm

Tolerance :

±10%

Series :

CTLQ1206NF

Size / Dimension :

0.126 L x 0.063 W (3.20mm x 1.60mm)

Material - Core :

-

Package / Case :

1206 (3216 Metric)

Features :

-

RoHS :

Non-Compliant

Shielding :

Unshielded

Product Status :

Active

Supplier Device Package :

1206

Current - Saturation (Isat) :

-

Mounting Type :

Surface Mount

Ratings :

-

Inductance-Nom (L) :

100 µH

Package :

Tape and Reel (TR)

Shape/Size Description :

RECTANGULAR PACKAGE

Test Frequency :

1 MHz

Material :

Plastic

Terminal Shape :

ONE SURFACE

Rated Current-Max :

0.045 A

Current Rating (Amps) :

45 mA

Special Feature :

Q MEASURED AT 2.5 MHZ

Surface Mount :

yes

Length :

66 mm

Number of Terminals :

2

DC Resistance (DCR) :

15.6Ohm Max

Q @ Freq :

40 @ 2.5MHz

Reach Compliance Code :

Compliant

Manufacturer :

Central Technologies

Color :

Black

Terminal Placement :

DUAL ENDED

Height - Seated (Max) :

0.079 (2.00mm)

Inductance Frequency - Test :

1 MHz

Number of Functions :

1

Frequency - Self Resonant :

7MHz

Pbfree Code :

yes
