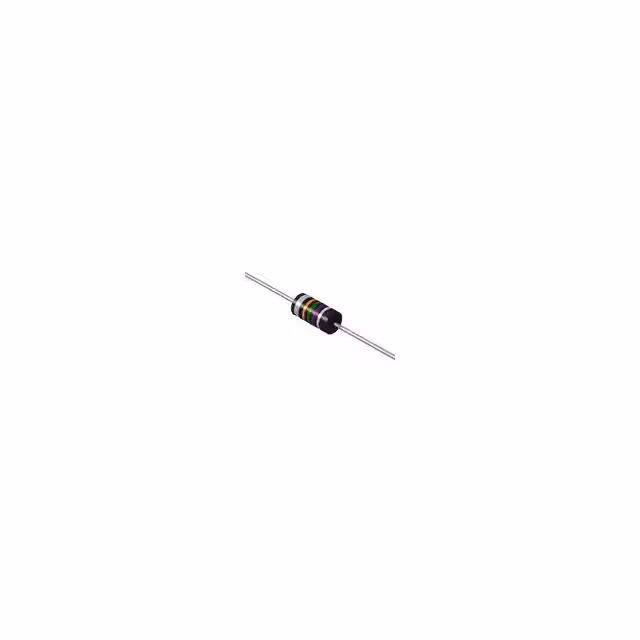

CTM1F-120J

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Supplier Device Package :

Axial

Inductance Frequency - Test :

2.5 MHz

Product Status :

Active

Reach Compliance Code :

Compliant

DC Resistance (DCR) :

2.7Ohm Max

Q @ Freq :

45 @ 2.5MHz

Series :

CTM1F

ECCN Code :

EAR99

Terminal Shape :

Wire

Mounting Type :

Through Hole

Inductor Application :

RF INDUCTOR

Shielding :

Unshielded

Inductor Type :

GENERAL PURPOSE INDUCTOR

Core Material :

Ferrite

Ratings :

-

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

Inductance-Nom (L) :

12 µH

Shape/Size Description :

TUBULAR PACKAGE

Rated Current-Max :

0.155 A

Height - Seated (Max) :

-

Number of Functions :

1

Frequency - Self Resonant :

40MHz

JESD-609 Code :

e3

Shielded :

No

Operating Temperature :

-55°C ~ 105°C

Surface Mount :

No

Material - Core :

Ferrite

Current Rating (Amps) :

155 mA

Terminal Placement :

Axial

Number of Terminals :

2

HTS Code :

8504.50.80.00

Package :

Tape and Reel (TR)

DC Resistance :

2.7 Ω

Inductance :

12 µH

Type :

Molded

Tolerance :

5%

Size / Dimension :

0.095 Dia x 0.250 L (2.41mm x 6.35mm)

Quality Factor-Min (at L-nom) :

45

Package / Case :

Axial

Test Frequency :

2.5 MHz

Current - Saturation (Isat) :

-

Features :

-
