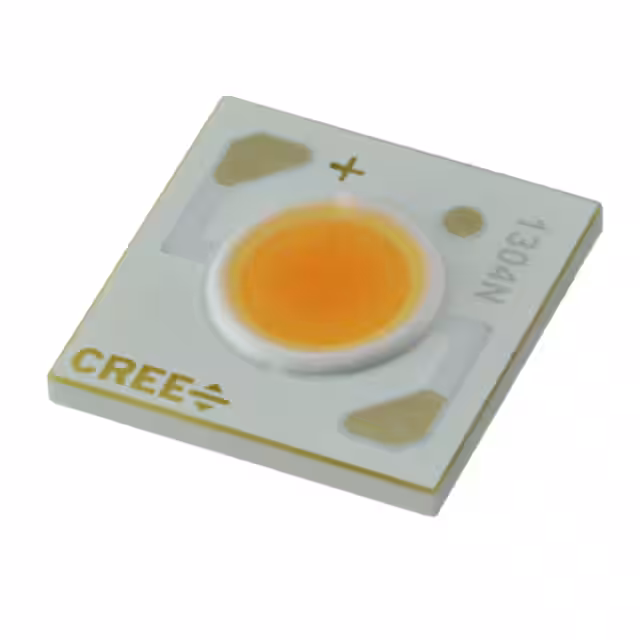

CXA1304-0000-000C00A40E8

Manufacturer :

Cree LED

Product Category :

Mounting Style :

SMD/SMT

Wavelength :

-

Product Category :

High Power LEDs - White

Package :

Tray

Packaging :

Tray

Width :

13.35 mm

Power Rating :

3.6 W

Vf - Forward Voltage :

9 V

Lens Type :

Flat

Subcategory :

LEDs

Current - Max :

1A

Features :

-

Color :

White, Warm

Viewing Angle :

115 deg

Configuration :

Square

Type :

Chip On Board (COB)

Manufacturer :

Cree LED

Series :

CXA1304

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 85 C

Height :

1.15 mm

RoHS :

Details

Product Type :

LED - High Power

Lens Dimensions :

6 mm

Product Status :

Active

Luminous Flux/Radiant Flux :

355 lm

Luminous Flux @ Current/Temperature :

368lm (355lm ~ 380lm)

CCT (K) :

2700K

Lens Color :

TINTED

Package / Case :

COB - Chip-on-Board

Lumens/Watt @ Current - Test :

102 lm/W

Voltage - Forward (Vf) (Typ) :

9V

Product :

White CoB LEDs

Base Product Number :

CXA1304

Length :

13.35 mm

Temperature - Test :

85°C

Lens Transparency :

Clear

Brand :

Cree LED

Size / Dimension :

13.35mm L x 13.35mm W

Luminous Intensity :

-

CRI (Color Rendering Index) :

80

Current - Test :

400mA

Light Emitting Surface (LES) :

6.00mm Dia

Illumination Color :

WARM WHITE
