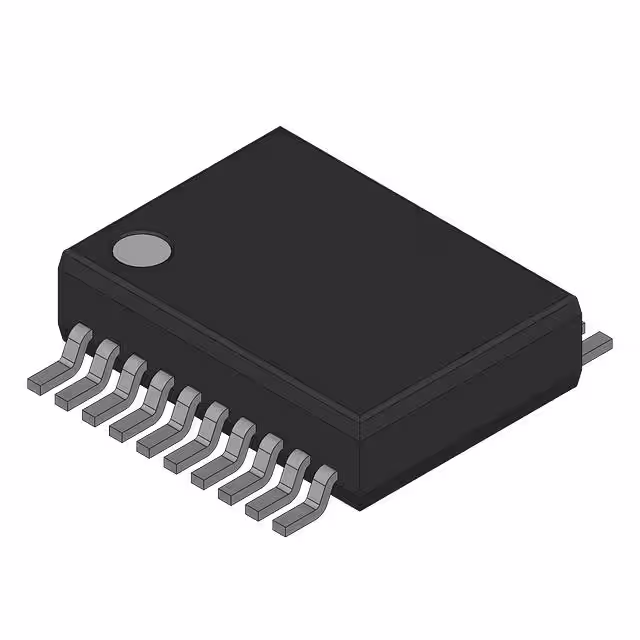

CY2CC810OIT

Manufacturer :

Infineon Technologies

Product Category :

Clock Buffers, Drivers

Number of Terminals :

20

Number of True Outputs :

10

Terminal Finish :

TIN LEAD

Type :

Fanout Buffer (Distribution)

Input Conditioning :

Schmitt Trigger

JESD-30 Code :

R-PDSO-G20

Package / Case :

20-SSOP (0.209, 5.30mm Width)

Logic IC Type :

LOW SKEW CLOCK DRIVER

Number of Functions :

1

Output :

AVCMOS

Differential - Input:Output :

No/No

Supply Voltage-Max (Vsup) :

2.625 V

Propagation Delay (tpd) :

3.5 ns

Peak Reflow Temperature (Cel) :

220

Width :

5.3 mm

Technology :

CMOS

Mounting Type :

Surface Mount

Series :

-

Ratio - Input:Output :

1:10

Input :

LVCMOS

Pbfree Code :

No

Same Edge Skew-Max (tskwd) :

0.38 ns

Length :

7.2 mm

Package :

Bulk

Number of Circuits :

1

Family :

2CC

Operating Temperature :

-40°C ~ 85°C (TA)

Surface Mount :

yes

Manufacturer :

Rochester Electronics LLC

Terminal Pitch :

0.65 mm

Package Shape :

RECTANGULAR

Terminal Form :

Gull wing

Voltage - Supply :

2.375V ~ 2.625V, 3.135V ~ 3.465V

Qualification Status :

COMMERCIAL

Additional Feature :

ALSO OPERATES AT 3.3V SUPPLY

Frequency - Max :

650 MHz

Supply Voltage-Min (Vsup) :

2.375 V

Supplier Device Package :

20-SSOP

Reach Compliance Code :

Unknown

Temperature Grade :

Industrial

Product Status :

Active

Pin Count :

20

Seated Height-Max :

2 mm

JESD-609 Code :

e0

Terminal Position :

Dual
