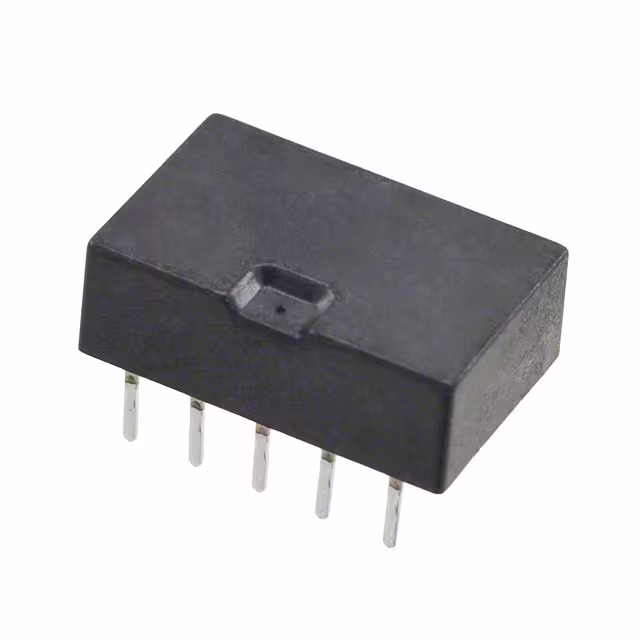

D3045
Or copy the link below:
- Mfr.Part #
- D3045
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY TELECOM DPDT 2A 9VDC
- Stock
- 29,618
- In Stock ：
- 29,618
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Signal Relays, Up to 2 Amps
- Surface Mount :
- No
- Contact Current(AC)-Max :
- 2 A
- Contact/Output Supply Type :
- AC/DC
- Physical Dimension :
- 14mm X 9mm X 5mm
- Coil Resistance :
- 810 Ω
- Packing Method :
- BOX; TUBE
- Body Length or Diameter :
- 14 mm
- ECCN Code :
- EAR99
- Release Time :
- 9 ms
- Contact Voltage(AC)-Max :
- 250 V
- VSWR :
- 1.07
- Sealing :
- IP67
- Termination Type :
- Solder
- Coil/Input Supply Type :
- DC
- Reach Compliance Code :
- Unknown
- HTS Code :
- 8536.49.00.50
- Relay Function :
- DPDT
- Relay Type :
- RF RELAY
- Electrical Life :
- 100000 Cycle(s)
- Body Height :
- 5 mm
- Coil Power :
- 100 mW
- Pbfree Code :
- yes
- Coil Voltage(DC)-Max :
- 9 V
- Coil Release Voltage(DC) :
- -6.75 V
- Operating Frequency-Max :
- 900 MHz
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Reference Standard :
- CECC; CSA; UL
- Coil Operate Voltage(DC) :
- 6.75 V
- Switching Time :
- 18 ms
- Operate Time :
- 9 ms
- Coil Current(DC)-Max :
- 0.011 A
- Contact Current(DC)-Max :
- 2 A
- Relay Action :
- LATCHED
- Contact Voltage(DC)-Max :
- 125 V
- Operating Frequency-Min :
- 100 MHz
- Body Breadth :
- 9 mm
- Datasheets
- D3045
