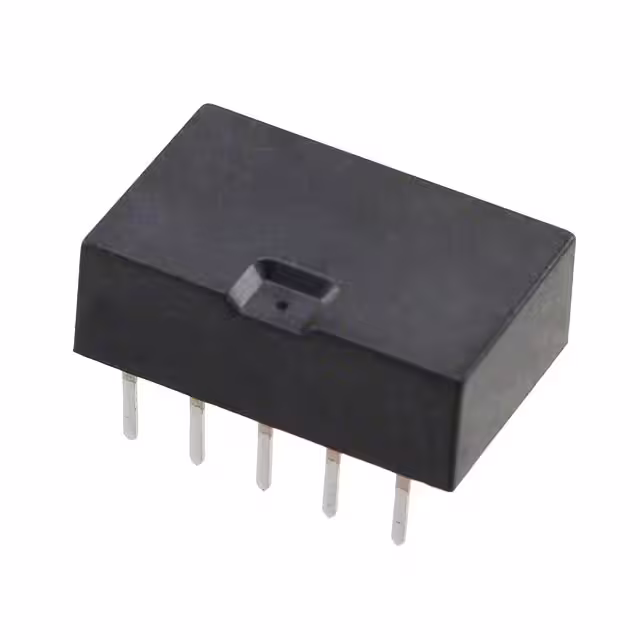

D3062
Or copy the link below:
- Mfr.Part #
- D3062
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY TELECOM DPDT 2A 4.5VDC
- Stock
- 18,911
- In Stock ：
- 18,911
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Signal Relays, Up to 2 Amps
- Contact Voltage(AC)-Max :
- 250V
- Coil Insulation :
- -
- Operating Temperature (Min) :
- -55°C
- Body Height :
- 5mm
- Contact Form :
- DPDT (2 Form C)
- Packing Method :
- BOX; TUBE
- Contact Voltage(DC)-Max :
- 125V
- Contact/Output Supply Type :
- AC/DC
- Termination Style :
- PC Pin
- Contact (AC) Max Rating R Load :
- 2A@250VAC
- Coil Operate Voltage(DC) :
- 3.15V
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Operate Time :
- 9 ms
- Physical Dimension :
- 14mm X 9mm X 5mm
- HTS Code :
- 8536.49.00.50
- Insertion Loss (Max) :
- -0.25 dB
- Contact Rating (Current) :
- 2A
- Termination Type :
- Solder
- Release Time :
- 9 ms
- ECCN Code :
- EAR99
- Coil Release Voltage(DC) :
- 3.15V
- Turn On Voltage (Max) :
- 3.15 VDC
- Operating Temperature :
- -40°C ~ 85°C
- Coil Voltage(DC)-Max :
- 4.5V
- Coil Current :
- 44.4mA
- Relay Type :
- RF RELAY
- Product Status :
- Active
- Must Operate Voltage :
- 3.15 VDC
- Series :
- FP2, AXICOM
- Body Breadth :
- 9 mm
- Coil Power :
- 200mW
- Base Product Number :
- D306
- Electrical Life :
- 100000 Cycle(s)
- Coil Voltage :
- 4.5VDC
- Body Length or Diameter :
- 14mm
- Switching Time :
- 18 ms
- Contact (DC) Max Rating R Load :
- 2A@125VDC
- Coil Type :
- Latching, Dual Coil
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Sealing :
- IP67
- Relay Action :
- LATCHED
- Must Release Voltage :
- -
- Features :
- --
- Turn Off Voltage (Min) :
- --
- Package :
- Bulk
- Seal Rating :
- -
- Contact Current(DC)-Max :
- 2A
- Packaging :
- Bulk
- Operating Frequency-Min :
- 100MHz
- Surface Mount :
- No
- Reference Standard :
- CECC; CSA; UL
- Isolation Max :
- -22.3 dB
- Contact Current(AC)-Max :
- 2A
- Relay Function :
- DPDT
- Operating Temperature (Max) :
- 85°C
- Contact Material :
- Palladium (Pd), Ruthenium (Ru), Gold (Au)
- Operating Frequency-Max :
- 900MHz
- Coil Resistance :
- 101Ohm
- Coil Current(DC)-Max :
- 0.044A
- Coil/Input Supply Type :
- DC
- VSWR :
- 1.07
- Switching Voltage :
- 250VAC, 220VDC - Max
- Datasheets
- D3062
