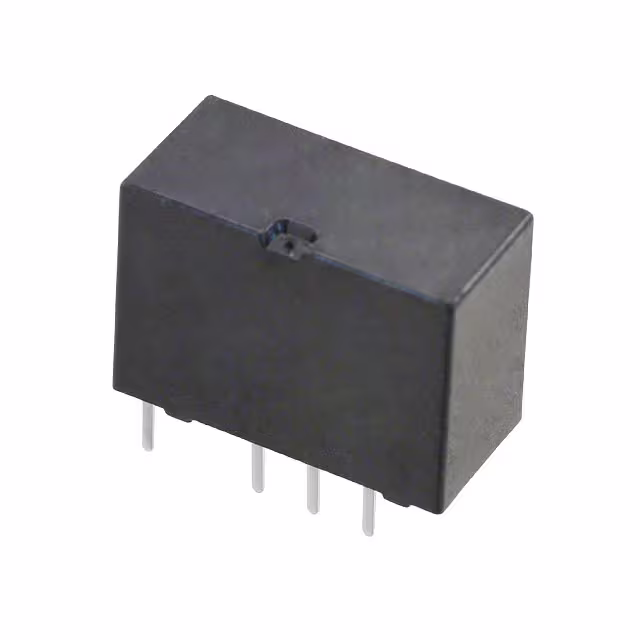

D3213

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Series :

FX2, AXICOM

Electrical Life :

500000 Cycle(s)

Contact/Output Supply Type :

AC/DC

Operating Frequency-Max :

900 MHz

Product Status :

Obsolete

HTS Code :

8536.49.00.50

Packaging :

Box/Tube

Contact Rating (Current) :

2A

Contact Material :

Palladium (Pd), Ruthenium (Ru), Gold (Au)

Seal Rating :

-

Turn On Voltage (Max) :

33.6 VDC

Manufacturer :

TE Connectivity

Packing Method :

BOX; TUBE

Reference Standard :

CECC; CSA; IEC; UL

Additional Feature :

RELEASE TIME WITH DIODE IN PARALLEL

Relay Function :

DPDT

Mounting Type :

Through Hole

ECCN Code :

EAR99

Coil Voltage(DC)-Max :

48 V

Coil Insulation :

-

Coil Voltage :

48VDC

Must Release Voltage :

4.8 VDC

Relay Type :

Telecom

Operating Frequency-Min :

100 MHz

Contact Voltage(DC)-Max :

220 V

Termination Style :

PC Pin

Switching Time :

18 ms

Relay Action :

Momentary

Coil Operate Voltage(DC) :

33.6 V

Contact Current(DC)-Max :

2 A

Coil Resistance :

7.68 kOhms

Termination Type :

Solder

Release Time :

3ms

Physical Dimension :

15mm X 7.3mm X 10.7mm

Coil Current :

6.3mA

Switching Voltage :

250VAC, 220VDC - Max

Coil Release Voltage(DC) :

4.8 V

Features :

--

Operate Time :

4ms

Surface Mount :

No

Package :

Bulk

Coil Power :

300 mW

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Contact Voltage(AC)-Max :

250 V

Contact Current(AC)-Max :

2 A

Must Operate Voltage :

33.6 VDC

Coil Current(DC)-Max :

0.006 A

Coil/Input Supply Type :

DC

Operating Temperature :

-40°C ~ 85°C

Base Product Number :

D321

Body Height :

10.7 mm

Body Length or Diameter :

15 mm

Turn Off Voltage (Min) :

4.8 VDC

VSWR :

1.45

Sealing :

IP67

Contact Form :

DPDT (2 Form C)

Reach Compliance Code :

Compliant

Body Breadth :

7.3 mm

Coil Type :

Non Latching
