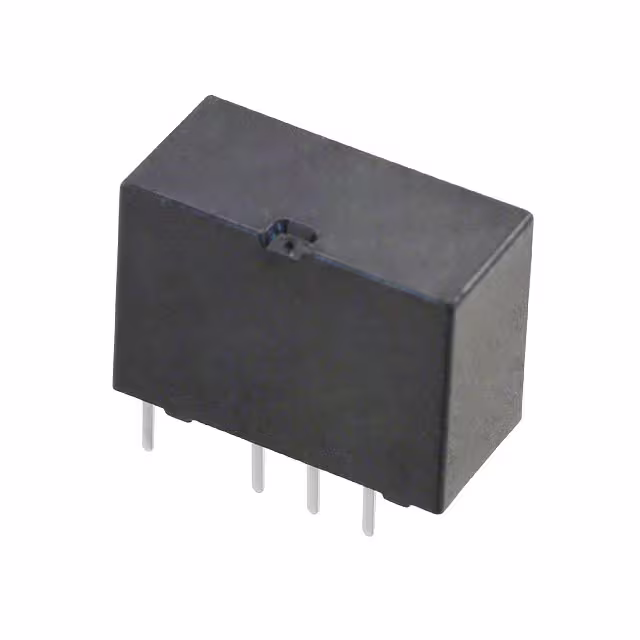

D3225

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Coil/Input Supply Type :

DC

Relay Type :

Telecom

Series :

FX2, AXICOM

Base Product Number :

D322

Termination Style :

PC Pin

Features :

--

Operating Frequency-Max :

900 MHz

Min Operating Temperature :

-55 °C

Body Breadth :

7.3 mm

Relay Function :

DPDT

Contact/Output Supply Type :

AC/DC

Contact Voltage(DC)-Max :

220 V

Coil Insulation :

-

Switching Voltage :

250VAC, 220VDC - Max

Termination Type :

Solder

Contact Voltage(AC)-Max :

250 V

Contact Rating (Current) :

2A

ECCN Code :

EAR99

Must Release Voltage :

0.9 VDC

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Contact Form :

DPDT (2 Form C)

Additional Feature :

RELEASE TIME WITH DIODE IN PARALLEL

Turn On Voltage (Max) :

6.3 VDC

Operating Frequency-Min :

100 MHz

Packing Method :

BOX; TUBE

Physical Dimension :

15mm X 7.3mm X 10.7mm

Electrical Life :

500000 Cycle(s)

Resistance :

3.28 Ω

Operating Temperature :

-40°C ~ 85°C

VSWR :

1.45

Seal Rating :

-

Body Height :

10.7 mm

Reference Standard :

CECC; CSA; IEC; UL

Reach Compliance Code :

Compliant

Coil Current(DC)-Max :

0.009 A

Operate Time :

4ms

Product Status :

Obsolete

Relay Action :

Momentary

HTS Code :

8536.49.00.50

Tolerance :

1 %

Coil Operate Voltage(DC) :

6.75 V

Coil Power :

80 mW

Coil Type :

Non Latching

Composition :

Thin Film

Voltage Rating :

50 V

Body Length or Diameter :

15 mm

Power Rating :

100 mW

Coil Voltage(DC)-Max :

9 V

Mounting Type :

Through Hole

Coil Release Voltage(DC) :

0.9 V

Height :

550 µm

Sealing :

IP67

Turn Off Voltage (Min) :

0.9 VDC

Package :

Bulk

Max Operating Temperature :

155 °C

Contact Current(DC)-Max :

2 A

Coil Current :

8.9mA

Contact Current(AC)-Max :

2 A

Coil Voltage :

9VDC

Coil Resistance :

1.01 kOhms

Manufacturer :

TE Connectivity

Packaging :

Bulk

Surface Mount :

No

Switching Time :

18 ms

Contact Material :

Palladium (Pd), Ruthenium (Ru), Gold (Au)

Temperature Coefficient :

25 ppm/°C

Must Operate Voltage :

6.3 VDC

Release Time :

3ms
