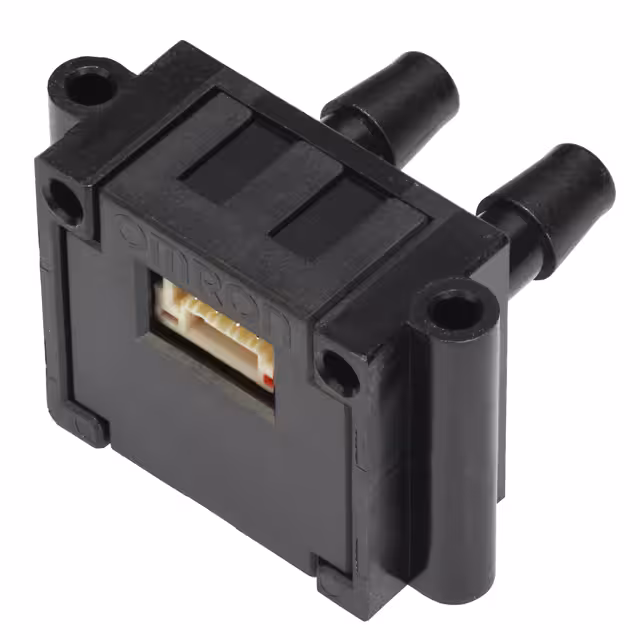

D6F-PH0505AD4
Or copy the link below:
- Mfr.Part #
- D6F-PH0505AD4
- Manufacturer
- Omron Electronic Components
- Package / Case
- 4-SIP, Dual Top Ports
- Datasheet
- Download
- Description
- AIRFLOW SENSOR MEMS
- Stock
- 193
- In Stock ：
- 193
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Pressure Sensors, Transducers
- Product Type :
- Pressure Sensors
- IP Rating :
- IP40
- Product :
- Transducers
- Height :
- 10.3 mm
- Operating Supply Voltage :
- 2.3 VDC to 3.6 VDC
- Output Type :
- I2C
- Operating Pressure :
- -0.01 ~ 0.01PSI (-0.05 ~ 0.05kPa)
- Maximum Pressure :
- 1.45PSI (10kPa)
- Output :
- 12 b
- Operating Supply Current :
- 6 mA
- Supplier Device Package :
- 4-SIP
- Accuracy :
- ±3%
- Subcategory :
- Sensors
- Base Product Number :
- D6F-PH
- Package / Case :
- 4-SIP, Dual Top Ports
- Series :
- D6F-PH
- Minimum Operating Temperature :
- - 20 C
- Voltage Rating :
- 3.6VDC
- Voltage - Supply :
- 2.3V ~ 3.6V
- Width :
- 18 mm
- Features :
- Temperature Compensated
- Supply Current :
- -
- Maximum Operating Temperature :
- + 80 C
- Port Style :
- Barbed
- Pressure Type :
- Differential
- Product Status :
- Active
- Package :
- Tray
- Packaging :
- Tray
- Termination Style :
- PC Pin
- Manufacturer :
- Omron
- Product Category :
- Industrial Pressure Sensors
- Mounting Style :
- PCB Mount
- Port Size :
- Male - 0.19" (4.93mm) Tube, Dual
- RoHS :
- Details
- Brand :
- Omron Electronics
- Length :
- 26 mm
- Operating Temperature :
- -20°C ~ 80°C
- Datasheets
- D6F-PH0505AD4
D6F-PH Series Differential Pressure Sensor I2C -20°C ~ 80°C -0.01 ~ 0.01PSI (-0.05 ~ 0.05kPa) Barbed ±3% 12 b 2.3V ~ 3.6V
D6F-PH0505AD4 Overview
In order to make your life easier, a 4-SIP, Dual Top Ports package includes this transducer. If you want reliable results, you should set the transducers' temperature to -20°C ~ 80°C. Supply voltages as low as 2.3V ~ 3.6V work well with the transducers. Electronic components like this are packaged in Tray packages.
D6F-PH0505AD4 Features
Package / Case: 4-SIP, Dual Top Ports
Operating Temperature: -20°C ~ 80°C
D6F-PH series
Operating Pressure: -0.01 ~ 0.01PSI (-0.05 ~ 0.05kPa)
Operating Supply Voltage: 2.3 VDC to 3.6 VDC
D6F-PH0505AD4 Applications
There are a lot of Omron Electronics Inc-EMC Div
D6F-PH0505AD4 Transducers applications.
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
- Hydraulic, brake, and engine oil fluid pressure monitoring
- Air brake pressure monitoring
- Vertical velocity indication (e.g. rise/sink speed)
