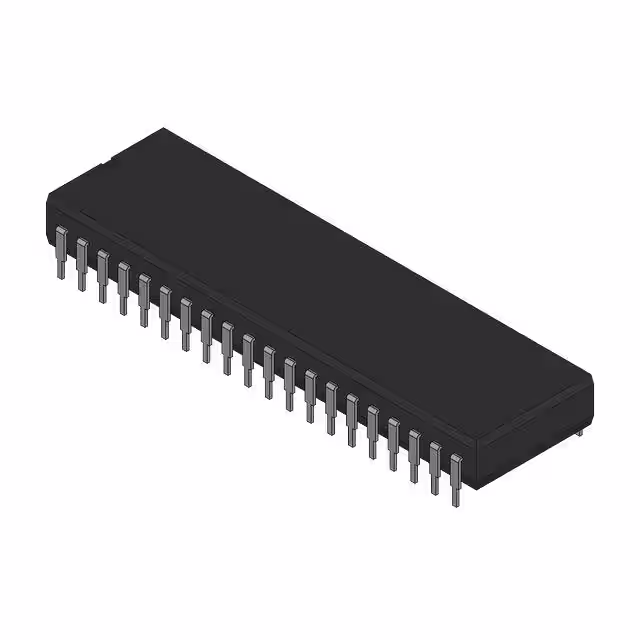

D8086-2

Manufacturer :

Advanced Micro Devices

Product Category :

Microprocessors

Supply Voltage-Min (Vsup) :

4.75V

Pin Count :

40

Format :

FIXED POINT

Terminal Finish :

Tin/Lead (Sn/Pb)

Address Bus Width :

20

Integrated Cache :

No

Boundary Scan :

No

Temperature Grade :

COMMERCIAL

JESD-30 Code :

R-GDIP-T40

Speed :

8 MHz

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR

Width :

15.24mm

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Pbfree Code :

No

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Length :

52.2605mm

Supply Voltage-Max (Vsup) :

5.25V

Seated Height-Max :

6.096mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

THROUGH-HOLE

Terminal Pitch :

2.54mm

Clock Frequency :

8MHz

Bit Size :

16

Low Power Mode :

No

Supply Voltage :

5V

Terminal Position :

Dual

External Data Bus Width :

16

Number of Terminals :

40

Surface Mount :

No

Operating Temperature (Max) :

70°C
