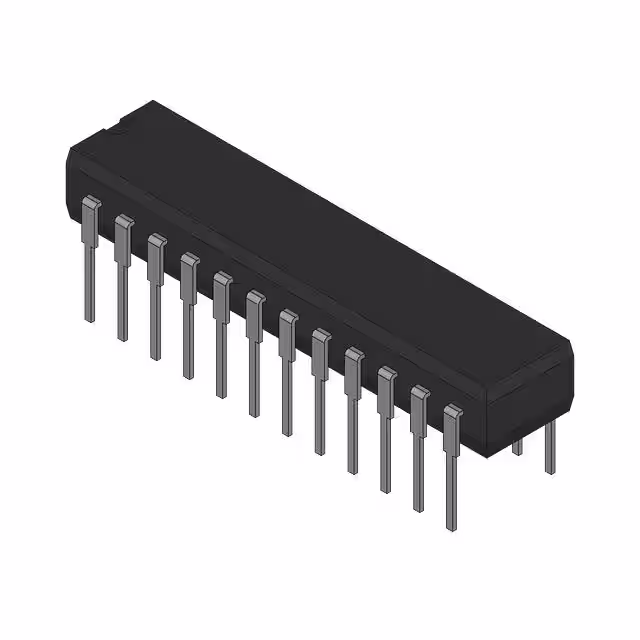

D8253-5

Manufacturer :

Rochester Electronics

Product Category :

Microprocessors

RoHS Status :

Non-RoHS Compliant

Supply Voltage-Max (Vsup) :

5.5V

JESD-30 Code :

R-CDIP-T24

uPs/uCs/Peripheral ICs Type :

TIMER, PROGRAMMABLE

External Data Bus Width :

8

Supply Current-Max :

140mA

Temperature Grade :

COMMERCIAL

Operating Temperature (Max) :

70°C

Length :

31.9405mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e0

Number of Timers :

3

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Pin Count :

24

Information Access Method :

PARALLEL, DIRECT ADDRESS

Width :

15.24mm

Terminal Form :

THROUGH-HOLE

Number of Terminals :

24

Seated Height-Max :

5.715mm

Terminal Pitch :

2.54mm

HTS Code :

8542.39.00.01

Supply Voltage :

5V

Terminal Finish :

Tin/Lead (Sn/Pb)

Bus Compatibility :

8085A; 8080A

Supply Voltage-Min (Vsup) :

4.5V

Number of Bits :

16

Surface Mount :

No

Terminal Position :

Dual

ECCN Code :

EAR99
