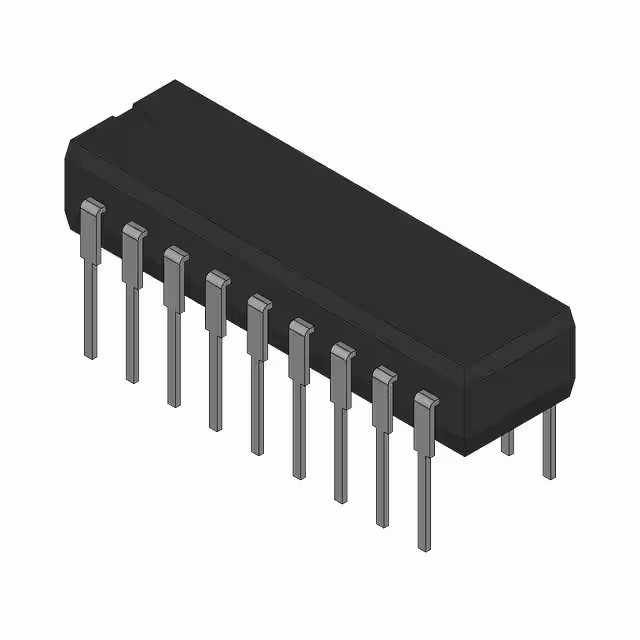

D82C28412

Manufacturer :

Altera (Intel)

Product Category :

Application Specific Clock/Timing

Primary Clock/Crystal Frequency-Nom :

25 MHz

JESD-30 Code :

R-GDIP-T18

Terminal Pitch :

2.54 mm

Differential - Input:Output :

No/No

Qualification Status :

Not Qualified

Product Status :

Obsolete

Reach Compliance Code :

Compliant

Input :

Crystal

Package / Case :

18-CDIP

Subcategory :

Clock Generators

Terminal Position :

Dual

Frequency - Max :

25MHz

Number of Terminals :

18

Terminal Finish :

Tin/Lead (Sn/Pb)

Mounting Type :

Through Hole

Output Clock Frequency-Max :

25 MHz

Main Purpose :

CPU

Seated Height-Max :

5.08 mm

uPs/uCs/Peripheral ICs Type :

CLOCK GENERATOR, PROCESSOR SPECIFIC

Supply Current-Max :

75 mA

Package :

Bulk

Terminal Form :

THROUGH-HOLE

Power Supplies :

5 V

Width :

7.62 mm

Output :

Clock

Package Shape :

RECTANGULAR

ECCN Code :

EAR99

Length :

22.795 mm

Supplier Device Package :

18-CDIP

Surface Mount :

No

Ratio - Input:Output :

1:2

Temperature Grade :

COMMERCIAL

Technology :

CMOS

Series :

-

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Supply :

4.75V ~ 5.25V

Operating Temperature :

0°C ~ 85°C (TC)

PLL :

No

Manufacturer :

Intel Corporation

HTS Code :

8542.39.00.01

JESD-609 Code :

e0

Number of Circuits :

1

Pin Count :

18
