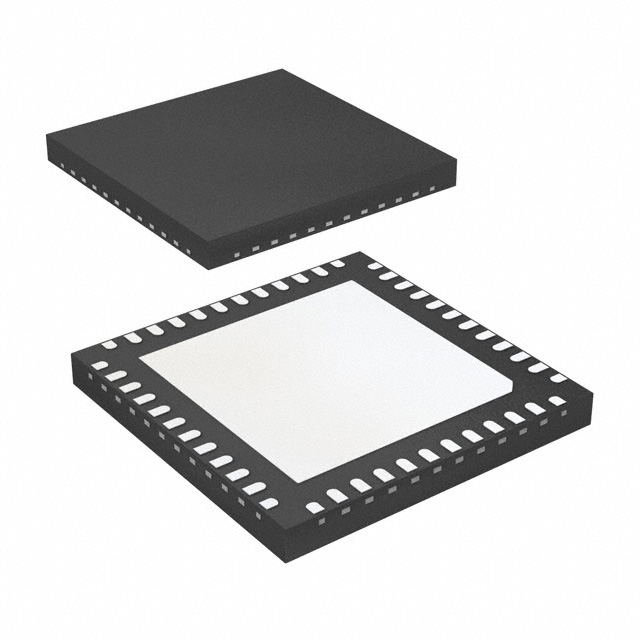

DA14580-01A32

Manufacturer :

Renesas Electronics Corporation

Product Category :

RF Transceiver ICs

Technology :

Si

Data Rate (Max) :

-

Current - Transmitting :

3.4mA

Subcategory :

Wireless and RF Integrated Circuits

Data Bus Width :

32 bit

Number of I/Os :

32 I/O

Serial Interfaces :

I²C, SPI, UART

Modulation :

-

Mounting Style :

SMD/SMT

Current - Receiving :

3.7mA

Output Power :

0 dBm

Type :

TxRx + MCU

Memory Size :

32kB OTP, 84kB ROM, 50kB SRAM

Min Operating Temperature :

-40 °C

Number of Timers :

2 Timer

Length :

6 mm

Package / Case :

48-VFQFN Exposed Pad

Number of GPIO :

32

Sensitivity (dBm) :

-93 dBm

Operating Frequency :

2.4 GHz

Width :

6 mm

Maximum Operating Temperature :

+ 85 C

Interface Type :

I2C, SPI, UART

Product Status :

Not For New Designs

RoHS :

Compliant

Voltage - Supply :

2.35V ~ 3.3V

Product Type :

RF System on a Chip - SoC

Interface :

I2C, SPI, UART

Supplier Device Package :

48-QFN (6x6)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Minimum Operating Temperature :

- 40 C

Series :

-

Height :

0.85 mm

Max Operating Temperature :

85 °C

Protocol :

Bluetooth v4.1

Base Product Number :

DA14580

Lead Free :

Lead Free

Sensitivity :

-93dBm

Power - Output :

-1dBm

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 85°C

GPIO :

32

Frequency :

2.4GHz

RF Family/Standard :

Bluetooth

Number of ADC Channels :

4 Channel

Program Memory Size :

32 kB, 84 kB
