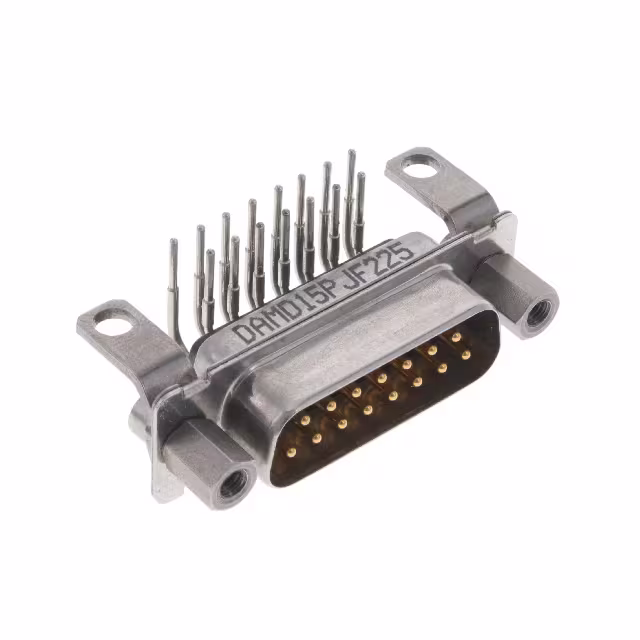

DAMD15PJF225
Or copy the link below:
- Mfr.Part #
- DAMD15PJF225
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 15POS R/A SLDR
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Minimum Operating Temperature :
- - 55 C
- Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Contact Type :
- Signal
- Product Category :
- D-Sub Standard Connectors
- Mounting Style :
- Through Hole
- Insulation Material :
- Thermoplastic
- Contact Form :
- Machined
- Backset Spacing :
- 0.283 (7.20mm)
- Color :
- Black
- Shell Size, Connector Layout :
- 2 DA A
- Package :
- Bulk
- Number of Rows :
- 2
- Factory Lead Time :
- 39 Weeks
- Contact Material :
- COPPER ALLOY
- Product Status :
- Active
- Feature :
- Grounding Indents, Mounting Brackets
- Termination :
- Solder
- Voltage Rating :
- -
- Subcategory :
- D-Sub Connectors
- RoHS Status :
- RoHS Compliant
- Contact Gender :
- Pin (Male)
- Manufacturer :
- ITT Cannon
- Brand :
- ITT Cannon
- Material Flammability Rating :
- UL94 V-0
- Shell Plating :
- Tin
- Series :
- D*M
- Contact Finish :
- Gold
- Current Rating (Amps) :
- 7.5A
- Type :
- PLUG
- Packaging :
- Bulk
- Connector Type :
- Plug, Male Pins
- Features :
- Grounding Indents, Mounting Brackets
- Shell Material, Finish :
- Stainless Steel
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Contact Finish Thickness :
- -
- Mounting Angle :
- RIGHT ANGLE
- Shell Material :
- Steel
- Ingress Protection :
- -
- Shell Size :
- 2 (A)
- Contact Plating :
- Gold
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Termination Style :
- Solder
- Maximum Operating Temperature :
- + 125 C
- Operating Temperature :
- -55°C~125°C
- Connector Style :
- D-Sub
- RoHS :
- Details
- Product Type :
- D-Sub Connectors - Standard Density
- Number of Positions :
- 15
- Wire Gauge :
- 20-28 AWG
- Current Rating :
- 7.5 A
- Datasheets
- DAMD15PJF225
D*M Series D-Sub Plug, Male Pins 15-Position Male Signal Solder 2 DA A Panel Mount, Through Hole, Right Angle Copper Alloy Gold Stainless Steel
DAMD15PJF225 Overview
A Plug, Male Pins package is included with it.Panel Mount, Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the D*M Series.In many ways, Grounding Indents, Mounting Brackets makes it more powerful.Operating temperature is set to -55°C~125°C.
DAMD15PJF225 Features
D*M series
DAMD15PJF225 Applications
There are a lot of ITT Cannon, LLC
DAMD15PJF225 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
