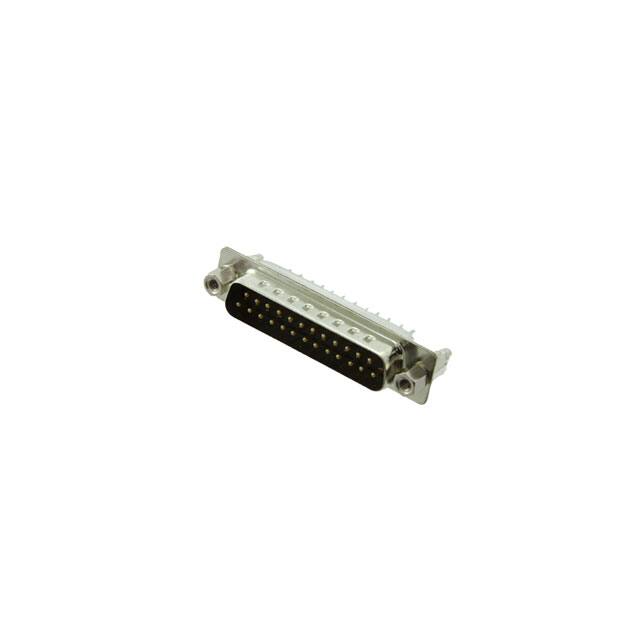

DB25-PT-1-BL-JS

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Connector Type :

Plug, Male Pins

Number Of PCB Rows :

2

Color :

Black

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Series :

DPT

PCB Contact Pattern :

STAGGERED

Packaging :

Tray

Contact Pattern :

STAGGERED

Termination :

Solder

Number of Rows :

2

Mounting Option 2 :

RIVET and JACKSCREW

Dielectric Withstanding Voltage :

1000VAC V

Feature :

Board Lock, Grounding Indents

Current Rating (Amps) :

3A

Shell Size, Connector Layout :

3 DB B

Reference Standard :

UL, CSA

Operating Temperature (Min) :

-65°C

Flange Feature :

Board Side (4-40); Mating Side, Female Screwlock (4-40)

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Length - Termination :

0.189 inch

Insulation Resistance :

5000000000Ohm

Shell Finish :

Tin

Factory Lead Time :

9 Weeks

Reliability :

COMMERCIAL

Contact Finish Thickness :

Flash

Additional Feature :

RoHS Compliant

Contact Style :

RND PIN-SKT

Connector Style :

D-Sub

Total Number of Contacts :

25

Body Breadth :

0.494 inch

Mating Contact Pitch :

0.109 inch

Contact Material :

COPPER ALLOY

Contact Finish :

Gold

Shell Material, Finish :

Steel, Tin Plated

Number of Positions :

25

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

250VAC
