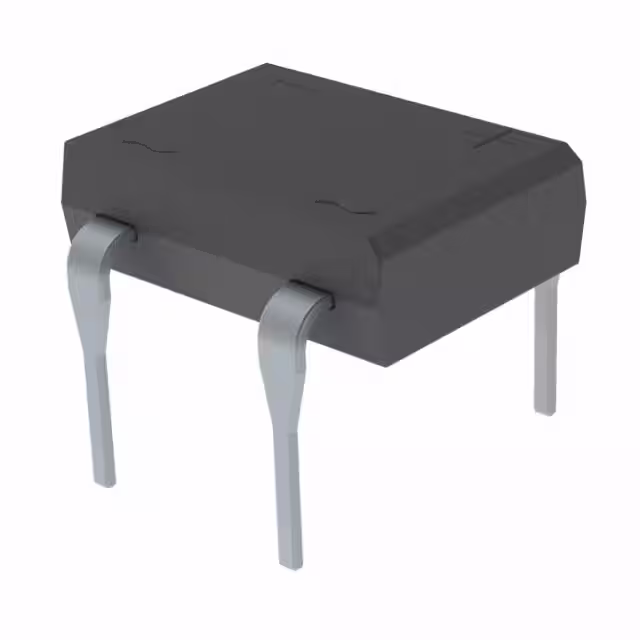

DBL203G

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Terminal Form :

THROUGH-HOLE

Current - Reverse Leakage @ Vr :

2 μA @ 200 V

Current - Average Rectified (Io) :

2 A

Additional Feature :

UL RECOGNIZED

Configuration :

BRIDGE, 4 ELEMENTS

Mounting Type :

Through Hole

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage :

Vrrm - 200V

Product Status :

Active

Reach Compliance Code :

Compliant

Number of Terminals :

4

Packaging :

DBL

Manufacturer :

TAIWAN SEMICONDUCTOR

Operating Temperature (Max) :

150°C

JESD-30 Code :

R-PDIP-T4

Number of Elements :

4

Diode Element Material :

SILICON

Number of Phases :

1

Terminal Finish :

Matte Tin (Sn)

Operating Temperature :

-55°C ~ 150°C (TJ)

Non-rep Pk Forward Current-Max :

50A

Surface Mount :

No

RoHS Status :

RoHS Compliant

Rep Pk Reverse Voltage-Max :

200V

Operating Temperature (Min) :

-55°C

Package :

Tube

Breakdown Voltage-Min :

200V

Series :

-

Output Current-Max :

2A

Qualification Status :

Not Qualified

HTS Code :

8541.10.00.80

Package / Case :

4-DIP (0.300, 7.62mm)

Supplier Device Package :

DBL

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

ECCN Code :

EAR99

Technology :

Standard

Capacitance :

IR - 2uA

Terminal Position :

Dual

Diode Type :

BRIDGE RECTIFIER DIODE

JESD-609 Code :

e3

Voltage - Forward (Vf) (Max) @ If :

1.15 V @ 2 A

Voltage - Peak Reverse (Max) :

200 V
