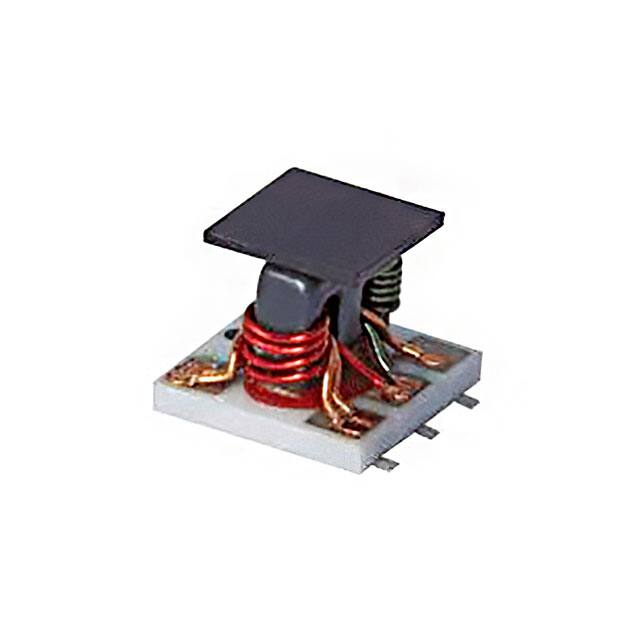

DBTC-10-13LX+

Manufacturer :

Mini-Circuits

Product Category :

RF Directional Coupler

Product Type :

Signal Conditioning

Maximum Operating Temperature :

+ 85 C

Frequency Range :

5 MHz to 1000 MHz

Insertion Loss :

-

Series :

-

Isolation :

-

Supplier Device Package :

-

Brand :

Mini-Circuits

Operating Frequency-Min :

5 MHz

Characteristic Impedance :

50 Ω

Product Status :

Active

Coupling Factor :

10.3 ± 0.5dB

Return Loss :

35.99dB

Product Category :

Signal Conditioning

Construction :

Module

Coupler Type :

Standard

Impedance :

50 Ohms

Product :

Directional Couplers

Package / Case :

5-SMD Module

Applications :

Cellular

Reach Compliance Code :

Unknown

ECCN Code :

EAR99

VSWR-Max :

1.6

RF/Microwave Device Type :

DIRECTIONAL COUPLER

Subcategory :

Filters

Frequency :

5MHz ~ 1GHz

Operating Frequency-Max :

1000 MHz

Termination Style :

SMD/SMT

Package :

Tape and Reel (TR)

Manufacturer :

Mini-Circuits

Packaging :

MouseReel

Minimum Operating Temperature :

- 40 C

Input Power-Max (CW) :

30 dBm

Power - Max :

1W
