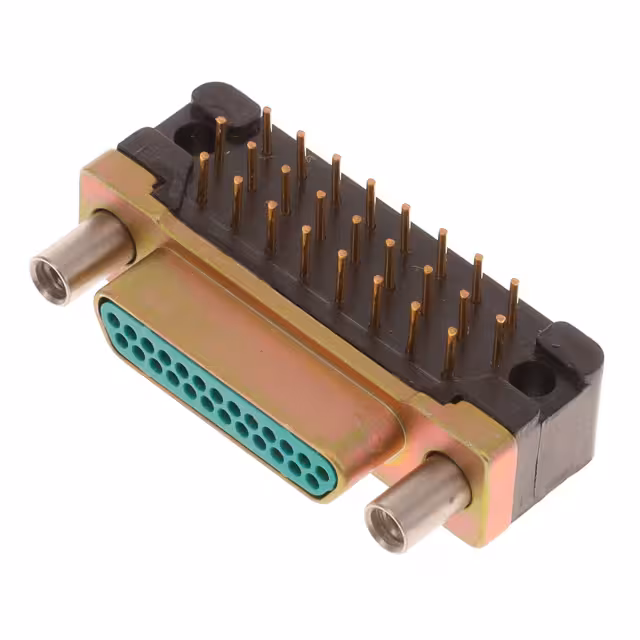

DCCM25PCBRPN

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Contact Form :

Machined

Total Number of Contacts :

25

Mounting Type :

Through Hole, Right Angle

RoHS Status :

RoHS Compliant

Additional Feature :

ENVIRONMENTAL CLASS

Reliability :

COMMERCIAL

Withdrawl Force-Min :

.139 N

Contact Type :

Signal

Contact Resistance :

8mOhm

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Body Length or Diameter :

1.185 inch

Reference Standard :

UL

Length - Termination :

0.109 inch

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Mating Contact Row Spacing :

0.05 inch

Body Breadth :

0.308 inch

Mounting Option 2 :

JACKPOST

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

31 Weeks

Feature :

Shielded

Packaging :

Bulk

Dielectric Withstanding Voltage :

600VAC V

Insulation Resistance :

5000000000Ohm

Current Rating (Amps) :

3A

PCB Contact Pattern :

STAGGERED

Number Of PCB Rows :

3

Shell Material, Finish :

Aluminum Alloy, Nickel Plated, Electroless

Operating Temperature :

-55°C~135°C

Insertion Force-Max :

1.668 N

Connector Type :

Plug, Male Pins

Plating Thickness :

50μin

Contact Finish Thickness :

50.0μin 1.27μm

Contact Material :

COPPER ALLOY

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Backset Spacing :

0.130 (3.30mm)

Number of Rows :

2

Contact Finish :

Gold

Series :

Dura-Con™

Mating Contact Pitch :

0.05 inch

Number of Positions :

25

Connector Style :

D-Type, Micro-D

Flange Feature :

Mating Side, Female Screwlock
