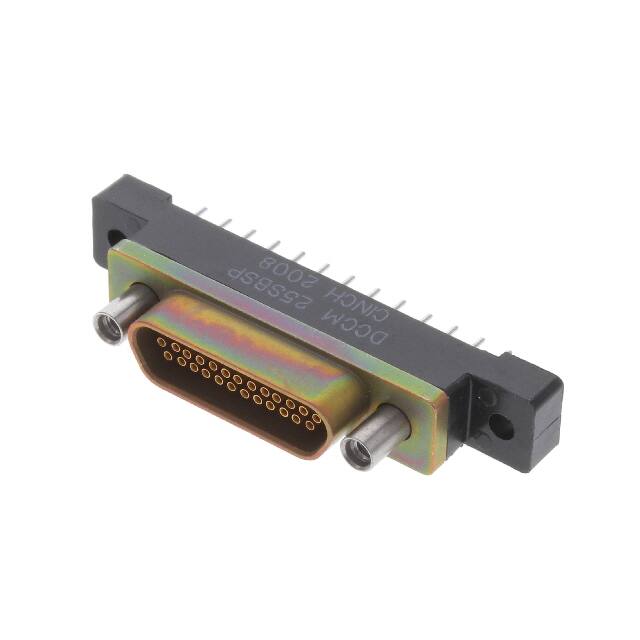

DCCM25SBSPN

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Reliability :

COMMERCIAL

Connector Style :

D-Type, Micro-D

Contact Finish Thickness :

50.0μin 1.27μm

Feature :

Shielded

Current Rating (Amps) :

3A

Dielectric Withstanding Voltage :

600VAC V

Body Depth :

0.355 inch

Withdrawl Force-Min :

.139 N

Series :

Dura-Con™

Mating Contact Pitch :

0.05 inch

Connector Type :

Receptacle, Female Sockets

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Length or Diameter :

1.74 inch

Mounting Type :

Through Hole

Number of Rows :

2

Contact Form :

Machined

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Length - Termination :

0.109 inch

Plating Thickness :

50μin

Reference Standard :

UL

Termination :

Solder

Flange Feature :

Mating Side, Female Screwlock

Mounting Option 2 :

JACKPOST

Body Breadth :

0.308 inch

Contact Material :

COPPER ALLOY

Insulation Resistance :

5000000000Ohm

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

31 Weeks

Total Number of Contacts :

25

Additional Feature :

ENVIRONMENTAL CLASS

Packaging :

Bulk

Insertion Force-Max :

1.668 N

RoHS Status :

Non-RoHS Compliant

Mating Contact Row Spacing :

0.05 inch

Shell Material, Finish :

Aluminum Alloy, Nickel Plated, Electroless

Contact Finish :

Gold

Number Of PCB Rows :

2

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Number of Positions :

25

PCB Contact Pattern :

STAGGERED

Contact Type :

Signal

Contact Resistance :

8mOhm

Operating Temperature :

-55°C~135°C
