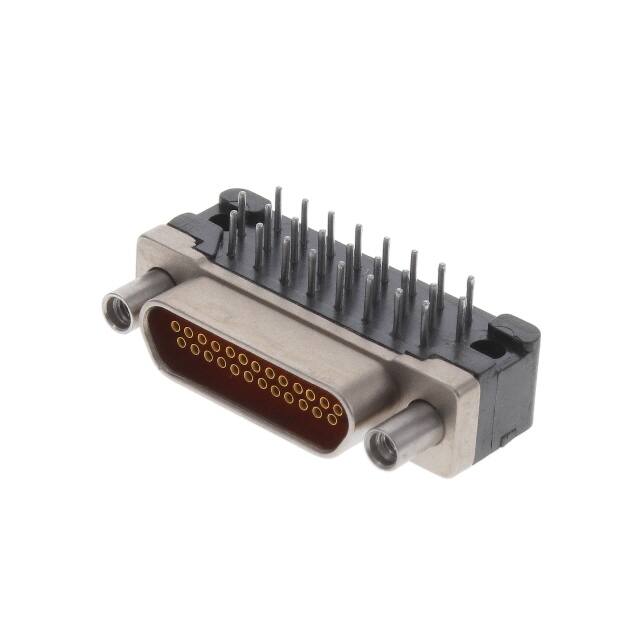

DCCM25SCBRP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Contact Finish :

Gold

Connector Type :

Receptacle, Female Sockets

Reliability :

COMMERCIAL

Connector Style :

D-Type, Micro-D

Contact Form :

Machined

Contact Type :

Signal

Additional Feature :

ENVIRONMENTAL CLASS

Packaging :

Bulk

Dielectric Withstanding Voltage :

600VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Termination :

Solder

Contact Finish Thickness :

50.0μin 1.27μm

Contact Resistance :

8mOhm

Total Number of Contacts :

25

Length - Termination :

0.109 inch

Material Flammability Rating :

UL94 V-0

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Feature :

Shielded

Number Of PCB Rows :

3

RoHS Status :

RoHS Compliant

Shell Finish :

CADMIUM/YELLOW CHROMATE

Number of Positions :

25

Body Length or Diameter :

1.185 inch

Mounting Type :

Through Hole, Right Angle

Current Rating (Amps) :

3A

Mounting Option 2 :

JACKPOST

Withdrawl Force-Min :

.139 N

Mating Contact Pitch :

0.05 inch

Contact Material :

COPPER ALLOY

Insulation Resistance :

5000000000Ohm

Factory Lead Time :

31 Weeks

Flange Feature :

Mating Side, Female Screwlock

Reference Standard :

UL

Mating Contact Row Spacing :

0.05 inch

Plating Thickness :

50μin

Number of Rows :

2

Operating Temperature :

-55°C~135°C

Backset Spacing :

0.130 (3.30mm)

Series :

Dura-Con™

PCB Contact Pattern :

STAGGERED

Insertion Force-Max :

1.668 N

Body Breadth :

0.308 inch
