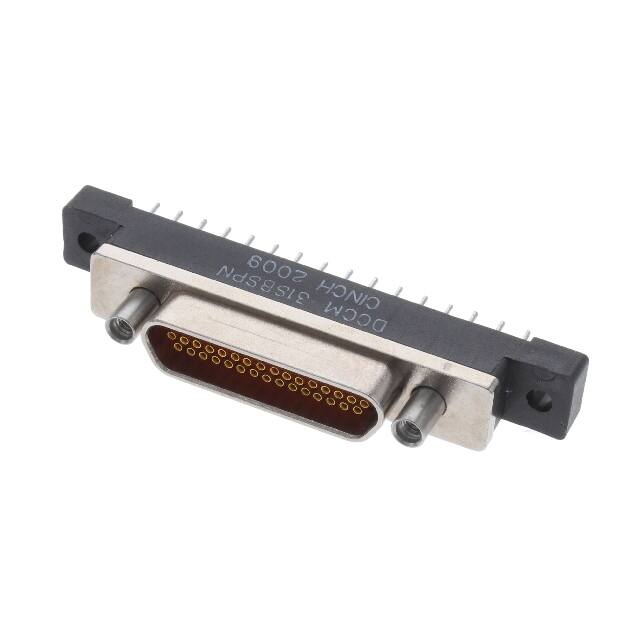

DCCM31SBSP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Flange Feature :

Mating Side, Female Screwlock

Series :

Dura-Con™

Number of Rows :

2

Connector Type :

Receptacle, Female Sockets

Number Of PCB Rows :

2

Mounting Option 2 :

JACKPOST

Contact Finish Thickness :

50.0μin 1.27μm

Insulation Resistance :

5000000000Ohm

Total Number of Contacts :

31

Packaging :

Bulk

Shell Finish :

Nickel

Feature :

Shielded

Termination :

Solder

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.05 inch

Contact Type :

Signal

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Contact Form :

Machined

Current Rating (Amps) :

3A

Length - Termination :

0.109 inch

Number of Positions :

31

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Reference Standard :

UL

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Factory Lead Time :

31 Weeks

Contact Material :

COPPER ALLOY

Mounting Type :

Through Hole

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

PCB Contact Pattern :

STAGGERED

Insertion Force-Max :

1.668 N

Contact Resistance :

8mOhm

Withdrawl Force-Min :

.139 N

Body Breadth :

0.308 inch

Plating Thickness :

50μin

Connector Style :

D-Type, Micro-D

Operating Temperature :

-55°C~135°C

Contact Finish :

Gold

RoHS Status :

RoHS Compliant

Body Depth :

0.355 inch

Mating Contact Row Spacing :

0.05 inch

Additional Feature :

ENVIRONMENTAL CLASS

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

600VAC V
