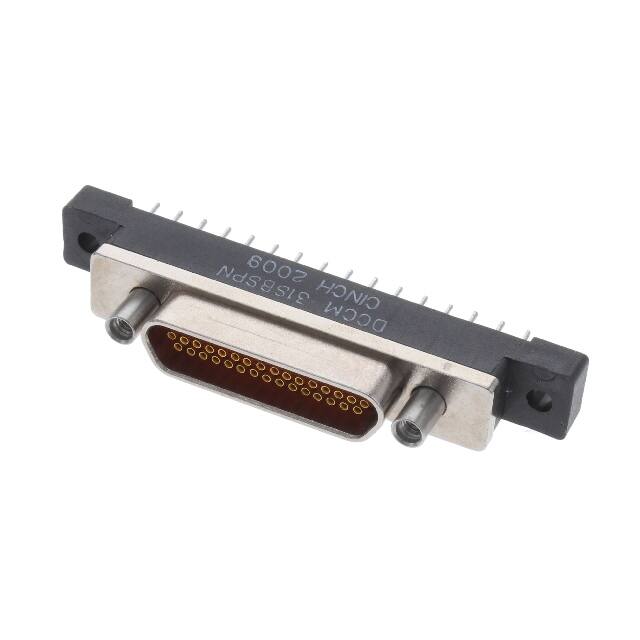

DCCM31SBSPN

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Plating Thickness :

50μin

Contact Finish Thickness :

50.0μin 1.27μm

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

RoHS Status :

Non-RoHS Compliant

Insulation Resistance :

5000000000Ohm

Mounting Type :

Through Hole

Operating Temperature :

-55°C~135°C

Mating Contact Pitch :

0.05 inch

Reference Standard :

UL

Contact Type :

Signal

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

600VAC V

Connector Style :

D-Type, Micro-D

Reliability :

COMMERCIAL

Length - Termination :

0.109 inch

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

31 Weeks

Body Depth :

0.355 inch

Total Number of Contacts :

31

Feature :

Shielded

Current Rating (Amps) :

3A

Number of Positions :

31

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Contact Material :

COPPER ALLOY

Contact Form :

Machined

Mounting Option 2 :

JACKPOST

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Connector Type :

Receptacle, Female Sockets

Mating Contact Row Spacing :

0.05 inch

Body Breadth :

0.308 inch

Series :

Dura-Con™

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insertion Force-Max :

1.668 N

Contact Resistance :

8mOhm

Additional Feature :

ENVIRONMENTAL CLASS

Packaging :

Bulk

Termination :

Solder

PCB Contact Pattern :

STAGGERED

Number of Rows :

2

Flange Feature :

Mating Side, Female Screwlock

Contact Finish :

Gold

Withdrawl Force-Min :

.139 N

Shell Material, Finish :

Aluminum Alloy, Nickel Plated, Electroless
