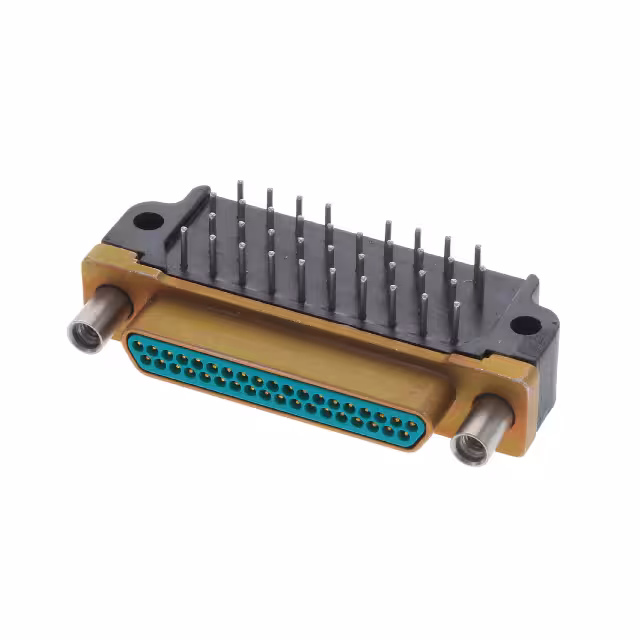

DCCM37PCBRP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Length - Termination :

0.109 inch

Number of Rows :

2

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Withdrawl Force-Min :

.139 N

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Number Of PCB Rows :

4

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Termination :

Solder

Operating Temperature :

-55°C~135°C

Body Length or Diameter :

1.485 inch

Series :

Dura-Con™

Mounting Type :

Through Hole, Right Angle

Shell Finish :

CADMIUM/YELLOW CHROMATE

Mating Contact Row Spacing :

0.05 inch

Contact Resistance :

8mOhm

Mating Contact Pitch :

0.05 inch

RoHS Status :

Non-RoHS Compliant

Dielectric Withstanding Voltage :

600VAC V

Reliability :

COMMERCIAL

Contact Finish Thickness :

50.0μin 1.27μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

3A

Factory Lead Time :

31 Weeks

Flange Feature :

Mating Side, Female Screwlock

Feature :

Shielded

PCB Contact Pattern :

STAGGERED

Plating Thickness :

50μin

Total Number of Contacts :

37

Mounting Option 2 :

JACKPOST

Contact Material :

COPPER ALLOY

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Reference Standard :

UL

Contact Form :

Machined

Insertion Force-Max :

1.668 N

Backset Spacing :

0.130 (3.30mm)

Connector Style :

D-Type, Micro-D

Number of Positions :

37

Contact Finish :

Gold

Material Flammability Rating :

UL94 V-0

Additional Feature :

ENVIRONMENTAL CLASS

Contact Type :

Signal

Insulation Resistance :

5000000000Ohm

Packaging :

Bulk

Connector Type :

Plug, Male Pins

Body Breadth :

0.308 inch
