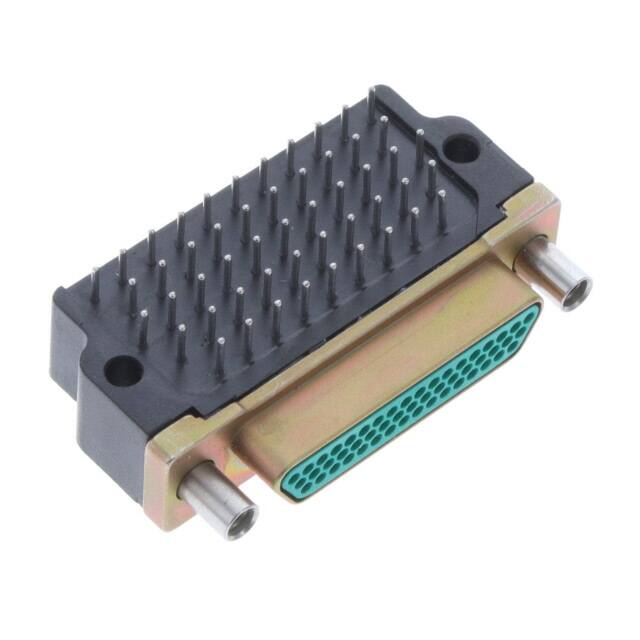

DCCM51PCBRP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Termination :

Solder

Contact Finish Thickness :

50.0μin 1.27μm

Additional Feature :

ENVIRONMENTAL CLASS

Mating Contact Pitch :

0.05 inch

Connector Type :

Plug, Male Pins

RoHS Status :

Non-RoHS Compliant

Insertion Force-Max :

1.668 N

Factory Lead Time :

31 Weeks

Number of Rows :

3

Operating Temperature :

-55°C~135°C

Terminal Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

STAGGERED

Feature :

Shielded

Body Length or Diameter :

1.485 inch

Plating Thickness :

50μin

Mating Contact Row Spacing :

0.05 inch

Backset Spacing :

0.150 (3.81mm)

Mounting Type :

Through Hole, Right Angle

Number of Positions :

51

Total Number of Contacts :

51

Current Rating (Amps) :

3A

Packaging :

Bulk

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

Reliability :

COMMERCIAL

Contact Resistance :

8mOhm

Contact Finish :

Gold

Series :

Dura-Con™

Contact Type :

Signal

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Length - Termination :

0.109 inch

Contact Form :

Machined

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Shell Material, Finish :

Aluminum Alloy, Yellow Chromate Plated Cadmium

Dielectric Withstanding Voltage :

600VAC V

Insulation Resistance :

5000000000Ohm

Number Of PCB Rows :

5

Mounting Option 2 :

JACKPOST

Body Depth :

0.65 inch

Flange Feature :

Mating Side, Female Screwlock

Reference Standard :

UL

Contact Material :

COPPER ALLOY

PCB Contact Row Spacing :

2.54 mm

Connector Style :

D-Type, Micro-D
