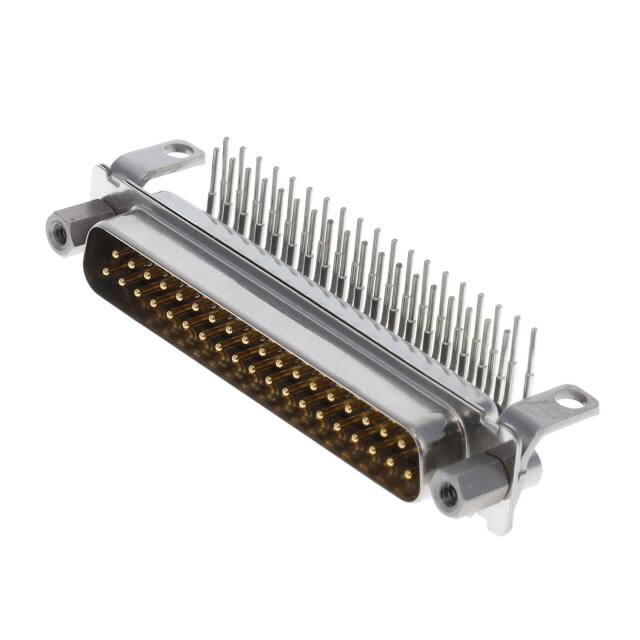

DCMD37PJF225
Or copy the link below:
- Mfr.Part #
- DCMD37PJF225
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS R/A SLDR
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Contact Type :
- Signal
- Features :
- Grounding Indents, Mounting Brackets
- Number of Positions :
- 37
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- RoHS :
- Details
- Wire Gauge :
- 20-28 AWG
- Contact Plating :
- Gold
- Mounting Style :
- Through Hole
- Contact Finish :
- Gold
- Insulation Material :
- Thermoplastic
- Contact Gender :
- Pin (Male)
- Ingress Protection :
- -
- Current Rating :
- 7.5 A
- Brand :
- ITT Cannon
- Product Category :
- D-Sub Standard Connectors
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Contact Finish Thickness :
- -
- Termination Style :
- Solder
- Product Type :
- D-Sub Connectors - Standard Density
- Shell Material :
- Steel
- Maximum Operating Temperature :
- + 125 C
- Minimum Operating Temperature :
- - 55 C
- Feature :
- Grounding Indents, Mounting Brackets
- Contact Form :
- Machined
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Packaging :
- Bulk
- Mounting Angle :
- RIGHT ANGLE
- Series :
- D*M
- Factory Lead Time :
- 39 Weeks
- Backset Spacing :
- 0.283 (7.20mm)
- Connector Type :
- Plug, Male Pins
- Product Status :
- Active
- Connector Style :
- D-Sub
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Voltage Rating :
- -
- Shell Material, Finish :
- Stainless Steel
- Package :
- Bulk
- Contact Material :
- COPPER ALLOY
- Manufacturer :
- ITT Cannon
- Current Rating (Amps) :
- 7.5A
- Subcategory :
- D-Sub Connectors
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Color :
- Black
- Operating Temperature :
- -55°C~125°C
- Shell Size, Connector Layout :
- 4 DC C
- Type :
- PLUG
- Number of Rows :
- 2
- Shell Size :
- 4 (C)
- Gender :
- Male
- Datasheets
- DCMD37PJF225
D*M Series D-Sub Plug, Male Pins 37-Position Male Signal Solder 4 DC C Panel Mount, Through Hole, Right Angle Copper Alloy Gold Stainless Steel
DCMD37PJF225 Overview
The packaging contains Plug, Male Pins.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the D*M Series.There are a number of advantages to its Grounding Indents, Mounting Brackets feature.As a result, the device runs at -55°C~125°C Operating Temperature.
DCMD37PJF225 Features
D*M series
DCMD37PJF225 Applications
There are a lot of ITT Cannon, LLC
DCMD37PJF225 D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
