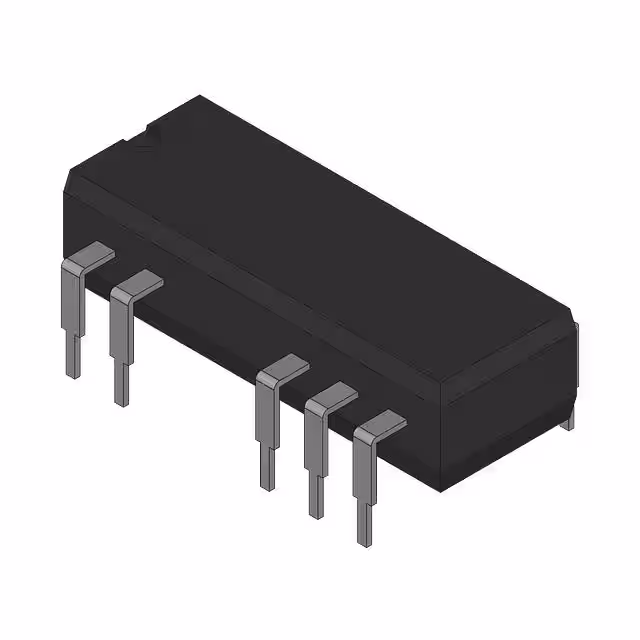

DCP010512DBPE4

Manufacturer :

Texas Instruments

Product Category :

DC DC Switching Controllers

Voltage - Output 2 :

-12V

Supplier Device Package :

7-PDIP

Efficiency :

82%

Applications :

ITE (Commercial)

Mounting Type :

Through Hole

Pbfree Code :

yes

Product :

Isolated

Maximum Operating Temperature :

+ 100 C

Total Power Output-Max :

1 W

Power (Watts) :

1 W

Approval Agency :

-

Type :

Isolated Module

Voltage - Output 4 :

-

Number of Terminals :

7

Seated Height-Max :

3.94 mm

Surface Mount :

No

Analog IC - Other Type :

DC-DC UNREGULATED POWER SUPPLY MODULE

Isolation Voltage :

1 kV

Series :

DCP010512DB

RoHS :

Details

Brand Name :

Texas

Efficiency (Main Output) :

82%

Input Voltage-Nom :

5 V

Voltage - Output 3 :

-

Control Features :

Enable, Active High

Reach Compliance Code :

Compliant

Terminal Position :

Dual

Mounting Style :

Through Hole

Standard Number :

-

Width :

7.11 mm

Minimum Operating Temperature :

- 40 C

Output Voltage-Min :

11.4 V

Package :

Tube

Current - Output (Max) :

83mA, 83mA

Qualification Status :

Not Qualified

Voltage - Output 1 :

12V

Output Voltage-Max :

12.6 V

Terminal Form :

THROUGH-HOLE

Factory Lead Time :

1 Week

Features :

Remote On/Off

Output Power :

1 W

JESD-609 Code :

e4

Pin Count :

14/7

Voltage - Input (Min) :

4.5V

Package / Case :

PDIP-14

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

ECCN Code :

EAR99

Length :

19.69 mm

Package Shape :

RECTANGULAR

Temperature Grade :

Industrial

Additional Feature :

ADDITIONAL -12V OUTPUT AVAILABLE

Input Voltage :

4.5 V to 5.5 V

Terminal Pitch :

2.54 mm

Technology :

BCDMOS

Trim/Adjustable Output :

No

Number of Functions :

1

Height :

5.33 mm

Size / Dimension :

0.76 L x 0.26 W x 0.21 H (19.2mm x 6.6mm x 5.3mm)

Control Mode :

Voltage

Voltage - Input (Max) :

5.5V

Peak Reflow Temperature (Cel) :

Not Applicable

Output Current-Max :

0.083 A

Product Status :

Active

JESD-30 Code :

R-PDIP-T7

Number of Outputs :

2 Output

Ripple Voltage (Main Out) :

0.007 Vrms

Operating Temperature :

-40°C ~ 100°C

Packaging :

Tube

Voltage - Isolation :

1 kV
